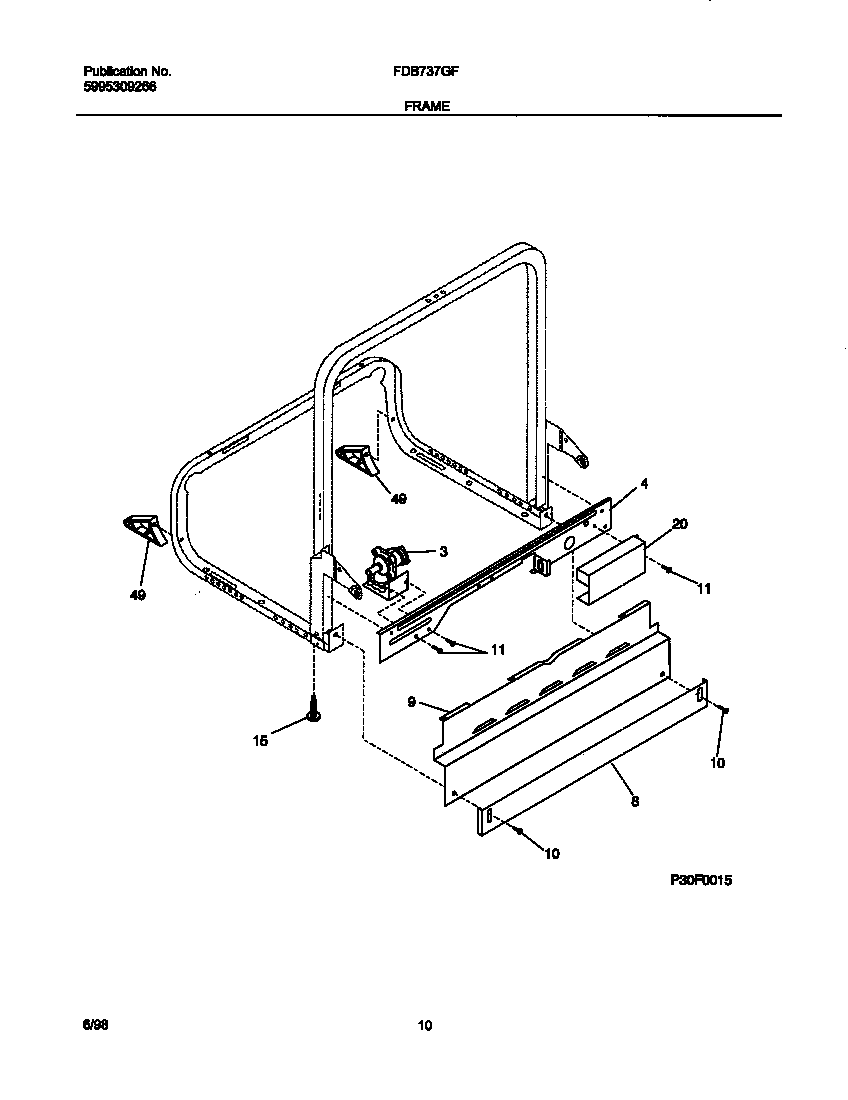

FDB737GFR3 06 – FRAME

FDB737GFR3 06 – FRAME

Written by

in

FDB737GFR3 06 – FRAME

Products

PositionProduct
*08712WCI 154290101
*08711WCI 154290001
*08708WCI 154249301
*08713WCI 154321801
*087145300807373 Frigidaire WASHER
*08716SCREW-8 X 5/8“ (2)
*08715154419403 Frigidaire Dishwasher Screw
*08709808690701 Frigidaire Dishwasher Screw
*08710WCI 154200601
3154637401 Frigidaire Dishwasher Fill Valve Water
45304508587 Frigidaire Dishwasher Brace
8154745503 Frigidaire Dishwasher Toe Panel
95304501484 Frigidaire Dishwasher Assembly Toekick Plate
11154294701 Frigidaire Dishwasher Screw
15WCI 154210901
20WCI 154209601
49WCI 154227401
