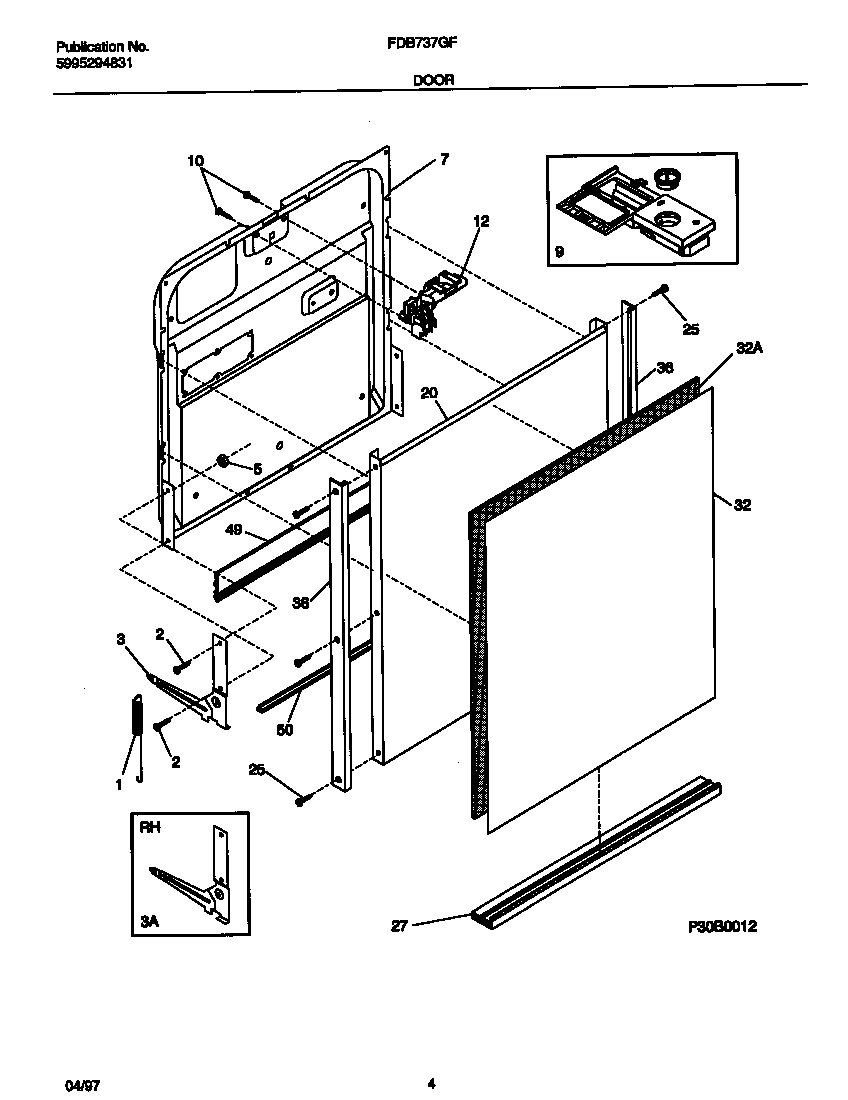

| *31565 | INSULATION,DOOR |
| *31564 | WCI 154200601 |
| 1 | 154430501 Frigidaire Dishwasher Door Spring |
| 2 | 154093301 Frigidaire Dishwasher ARM Assembly Screw |
| 3C | WCI 154298101 |
| 3B | PIN-ARM (NOT ILLUSTRATED) |
| 3 | 5304409912 Frigidaire Dishwasher P-1 Right Hinge |
| 5 | 5303013272 Frigidaire Oven Nut |
| 7 | WCI 154299002 |
| 9 | 154574401 Frigidaire Dishwasher Dispenser |
| 10 | SCREW-LATCH MTG, (2) (NOT ILLUSTRATED) |
| 12 | 5304442175 Frigidaire Black Door Latch Assembly |
| 12 | 154103702 Frigidaire Dishwasher Screw |
| 20 | WCI 154210601 |
| 25 | 154419403 Frigidaire Dishwasher Screw |
| 27 | WCI 154257602 |
| 32 | WCI 154229001 |
| 32A | WCI 154229101 |
| 32B | WCI 154229102 |
| 36 | WCI 154254202 |
| 49 | 809006501 Frigidaire Bottom Seal/Gasket Door |
| 50 | WCI 154211401 |
