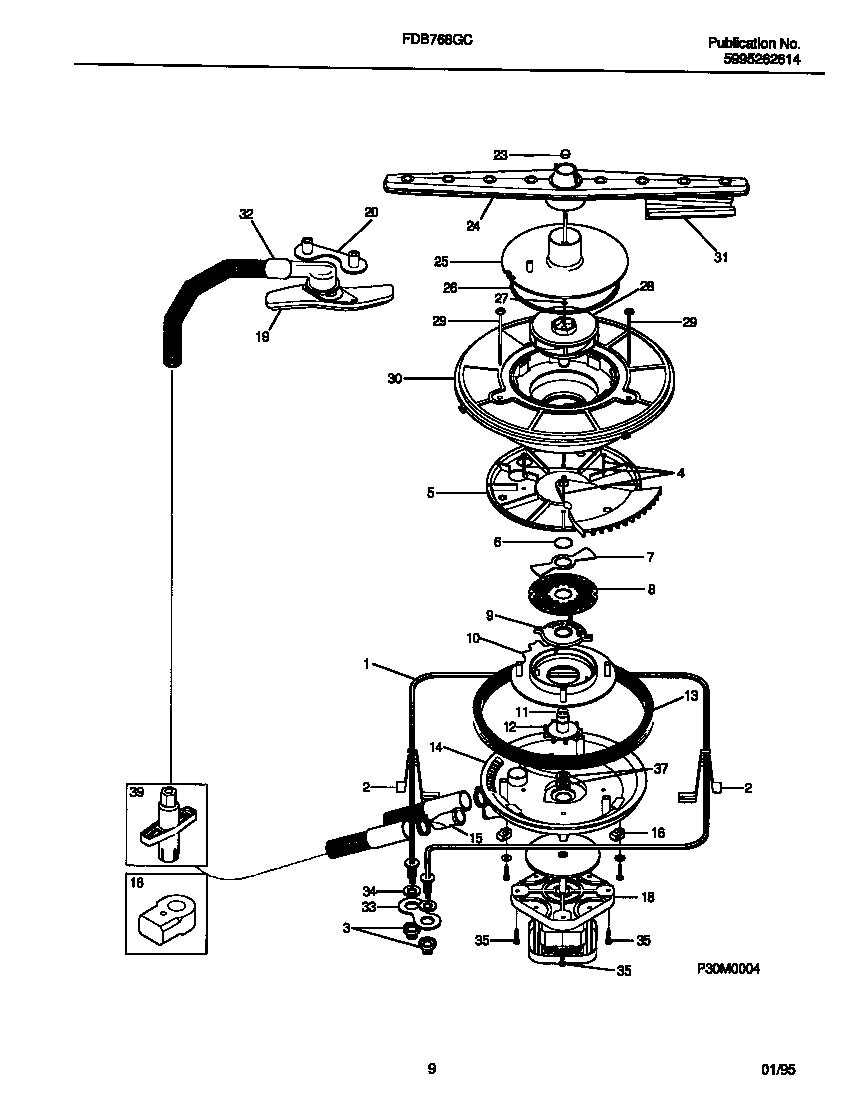

FDB768GCC0 06 – MOTOR DETAILS

Products

Position	Product
*39326	SEAL, SECOND LEVEL (NOT ILLUSTRATED)
*39324	SCREW-BRACKET (2)
*39327	WCI 154085901
*39325	WCI 154089101
1	WCI 5300809584
2	HEATER BRACKET
3	154106202 Frigidaire Dishwasher Heater Nut
4	WCI 154086301
5	WCI 154084701
6	WCI 154085201
7	WCI 154085001
8	WCI 154084901
9	WCI 154085101
10	WCI 154084601
11	WCI 5303351052
12	WCI 154085401
13	WCI 154085501
14	WCI 154084501
15	WCI 5300809937
16	WCI 154084801
18	MOTOR-PUMP
19	WCI 154119401
20	WCI 154126401
23	SPRAY ARM NUT
24	WCI 154156601
25	WCI 154157401
26	WCI 154086001
27	SCREW 10-32 HEXAGONAL
28	154085301 Frigidaire Dishwasher Impeller
29	WCI 154086201
30	FILTER HOUSING ASSEMBLY
31	WCI 5300809938
32	WCI 154119301
33	WASHER
34	WCI 154064901
35	WCI 5300809022
37	WCI 5303943099
39	TOOL – 4 IN 1
