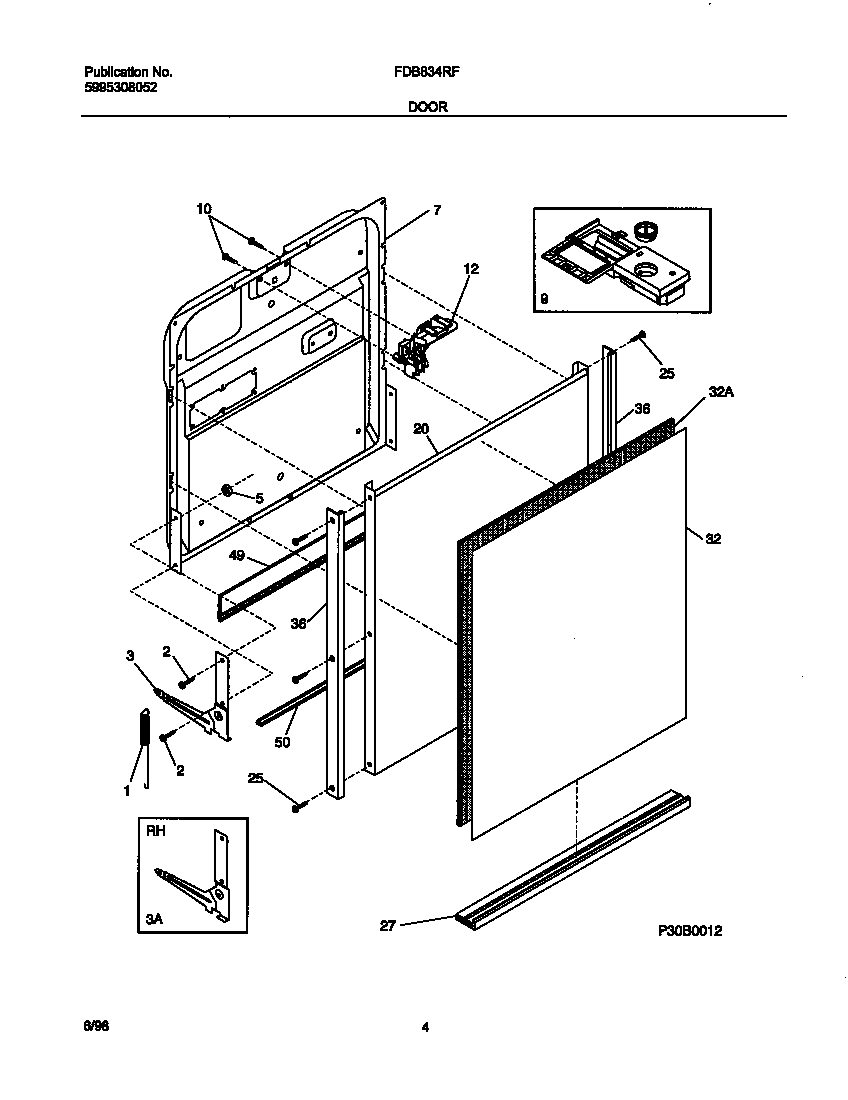

| *09567 | PIN-ARM (NOT ILLUSTRATED) |
| *09568 | WCI 154200601 |
| *09566 | 154325201 Frigidaire Linkage Spring |
| *09569 | SCREW-8 X 5/8`` (2) |
| 1 | 154430501 Frigidaire Dishwasher Door Spring |
| 2 | 154093301 Frigidaire Dishwasher ARM Assembly Screw |
| 3A | 5304409912 Frigidaire Dishwasher P-1 Right Hinge |
| 5 | 5303013272 Frigidaire Oven Nut |
| 7 | WCI 154299002 |
| 9 | 154574401 Frigidaire Dishwasher Dispenser |
| 10 | SCREW-LATCH MTG, (2) (NOT ILLUSTRATED) |
| 12 | 5304442175 Frigidaire Black Door Latch Assembly |
| 20 | WCI 154210602 |
| 27 | WCI 154257603 |
| 32 | WCI 5303943154 |
| 32 | WCI 154229004 |
| 36 | WCI 154309307 |
| 49 | 809006501 Frigidaire Bottom Seal/Gasket Door |
| 50 | WCI 154211401 |
