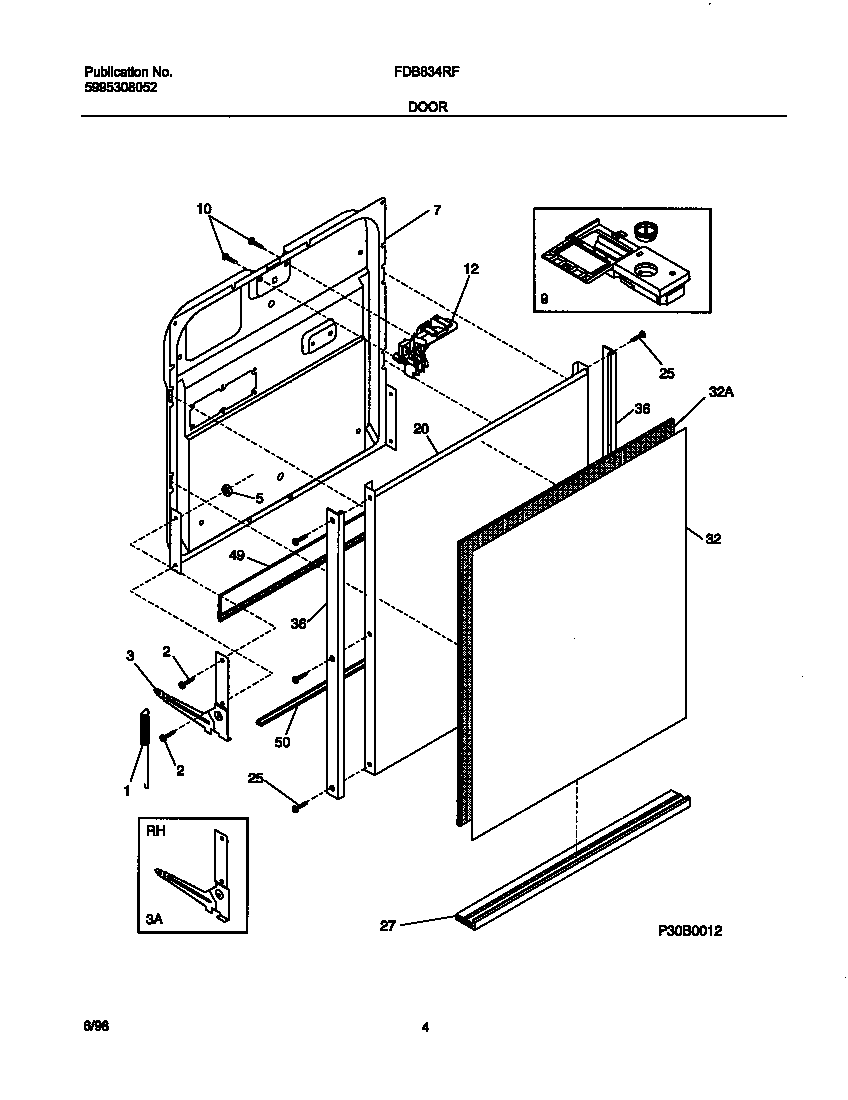

FDB834RFS0 03 – DOOR

Products

Position	Product
*09567	PIN-ARM (NOT ILLUSTRATED)
*09568	WCI 154200601
*09566	154325201 Frigidaire Linkage Spring
*09569	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154210602
27	WCI 154257601
32	WCI 5303943154
32	WCI 154229004
36	WCI 154309305
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
