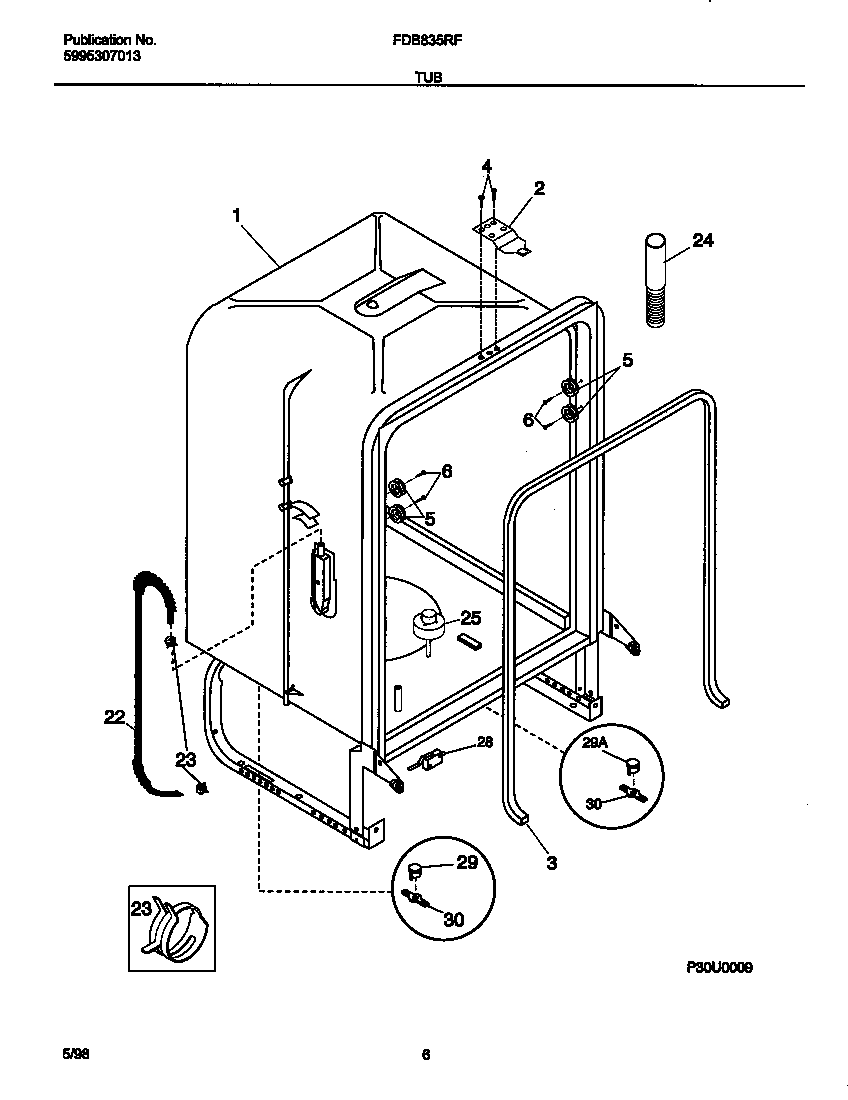

FDB835RFS0 04 – TUB

FDB835RFS0 04 – TUB

Written by

in

FDB835RFS0 04 – TUB

Products

PositionProduct
*72056WCI 154249402
*72049154200701 Frigidaire Dishwasher Screw
*72053WCI 5300807270
*72050808690701 Frigidaire Dishwasher Screw
*72052154297701 Frigidaire Dishwasher Screw
*72051154241101 Frigidaire Dishwasher Retainer
*72054154641601 Frigidaire Dishwasher Insulation
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
28FLOAT SWITCH ASSY
29154753101 Frigidaire Dishwasher Thermistor
29154290204 Frigidaire Dishwasher Thermostat
