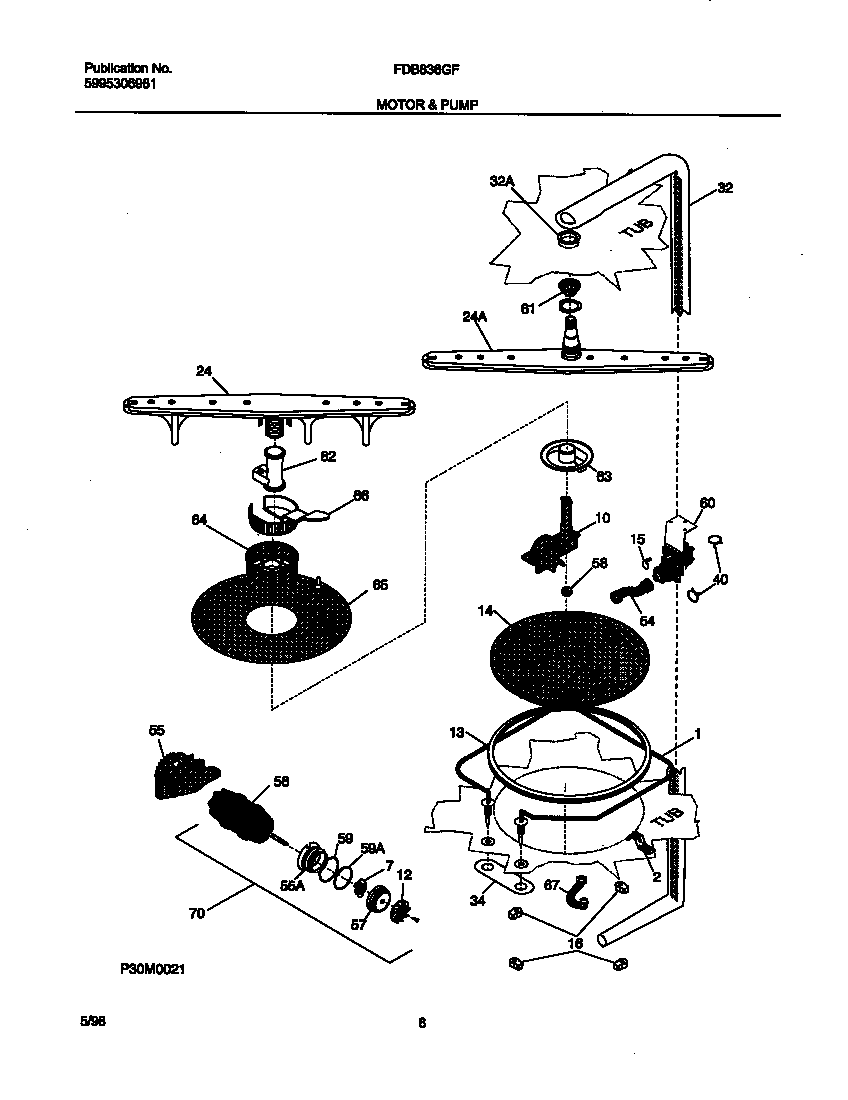

FDB836GFB4 05 – MOTOR

FDB836GFB4 05 – MOTOR

Written by

in

FDB836GFB4 05 – MOTOR

Products

PositionProduct
*49858WCI 5303316032
*49857154289801 Frigidaire Dishwasher Shield
*49856154106202 Frigidaire Dishwasher Heater Nut
*49863154754901 Frigidaire Dishwasher Screw
*49860154348401 Frigidaire Dishwasher Clamp
*49867WCI 154247401
*49861WCI 154246101
*49859SCREW, SS IMPELLER (NOT ILLUSTRATED)
*49866WCI 154247201
*49862BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*49865CLAMP, HOSE
*49864WCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154211001
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
24A154313601 Frigidaire Dishwasher Control Arm P1
24BWCI 154252001
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247501
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
71WCI 154289901
