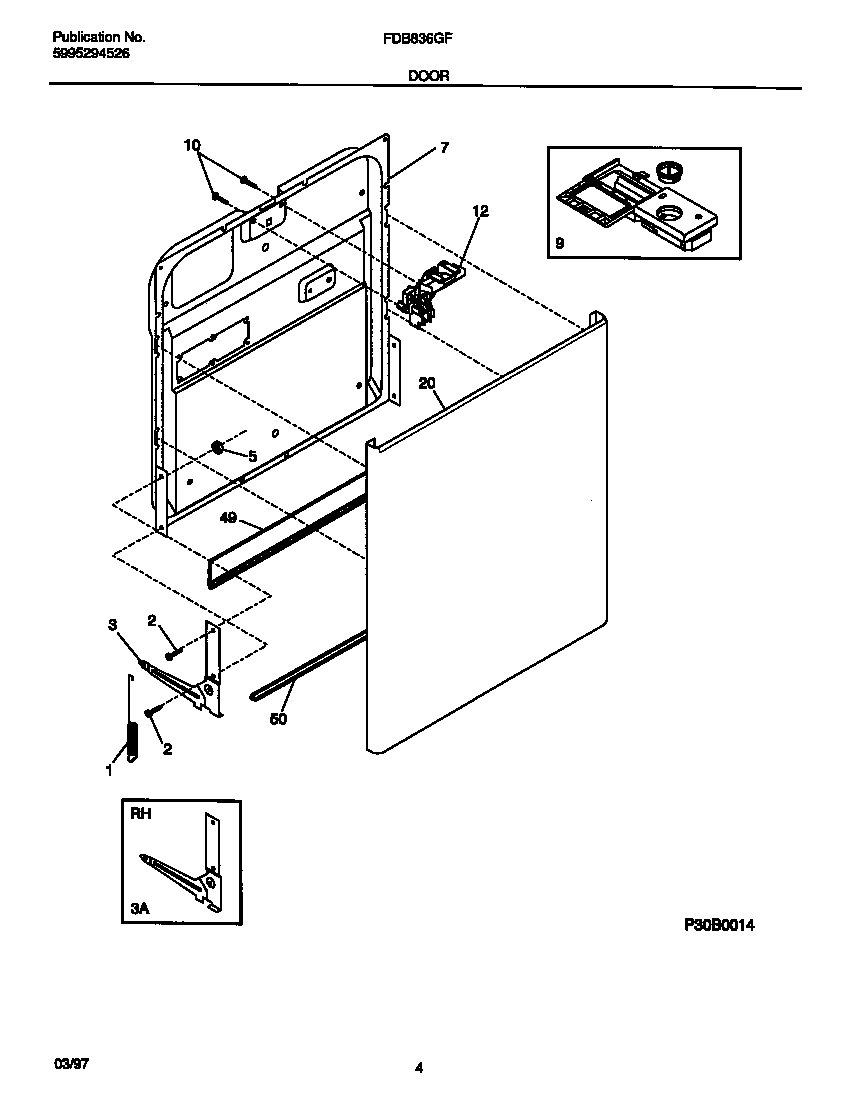

FDB836GFS2 03 – DOOR

FDB836GFS2 03 – DOOR

Written by

in

FDB836GFS2 03 – DOOR

Products

PositionProduct
*96123154419403 Frigidaire Dishwasher Screw
*96126SCREW-8 X 5/8“ (2)
*96125INSULATION,DOOR
*96124WCI 154200601
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3APIN-ARM (NOT ILLUSTRATED)
3BWCI 154298101
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12154103702 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154292601
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
