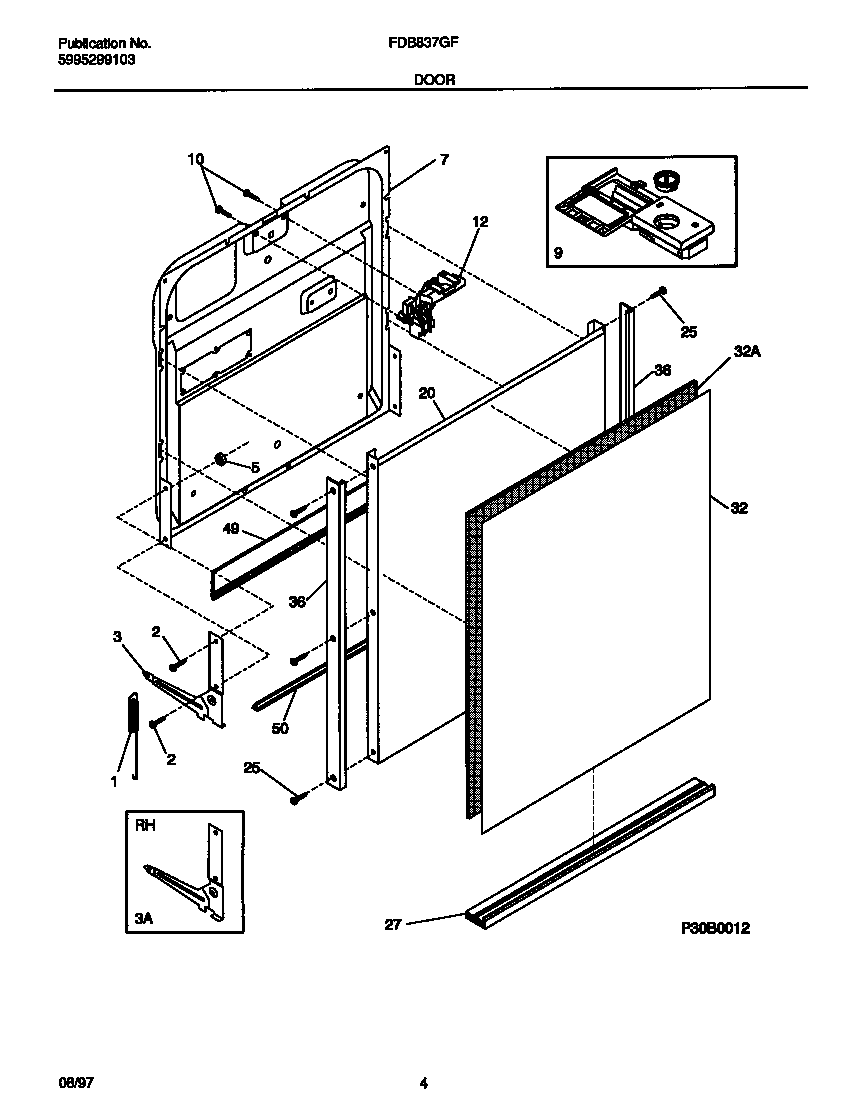

FDB837GFR2 03 – DOOR

FDB837GFR2 03 – DOOR

Written by

in

FDB837GFR2 03 – DOOR

Products

PositionProduct
*15766PIN-ARM (NOT ILLUSTRATED)
*15767WCI 154298101
*15769INSULATION,DOOR
*15768WCI 154200601
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
25154419403 Frigidaire Dishwasher Screw
27WCI 154309503
32WCI 154229001
32WCI 5303943148
36WCI 154309303
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
