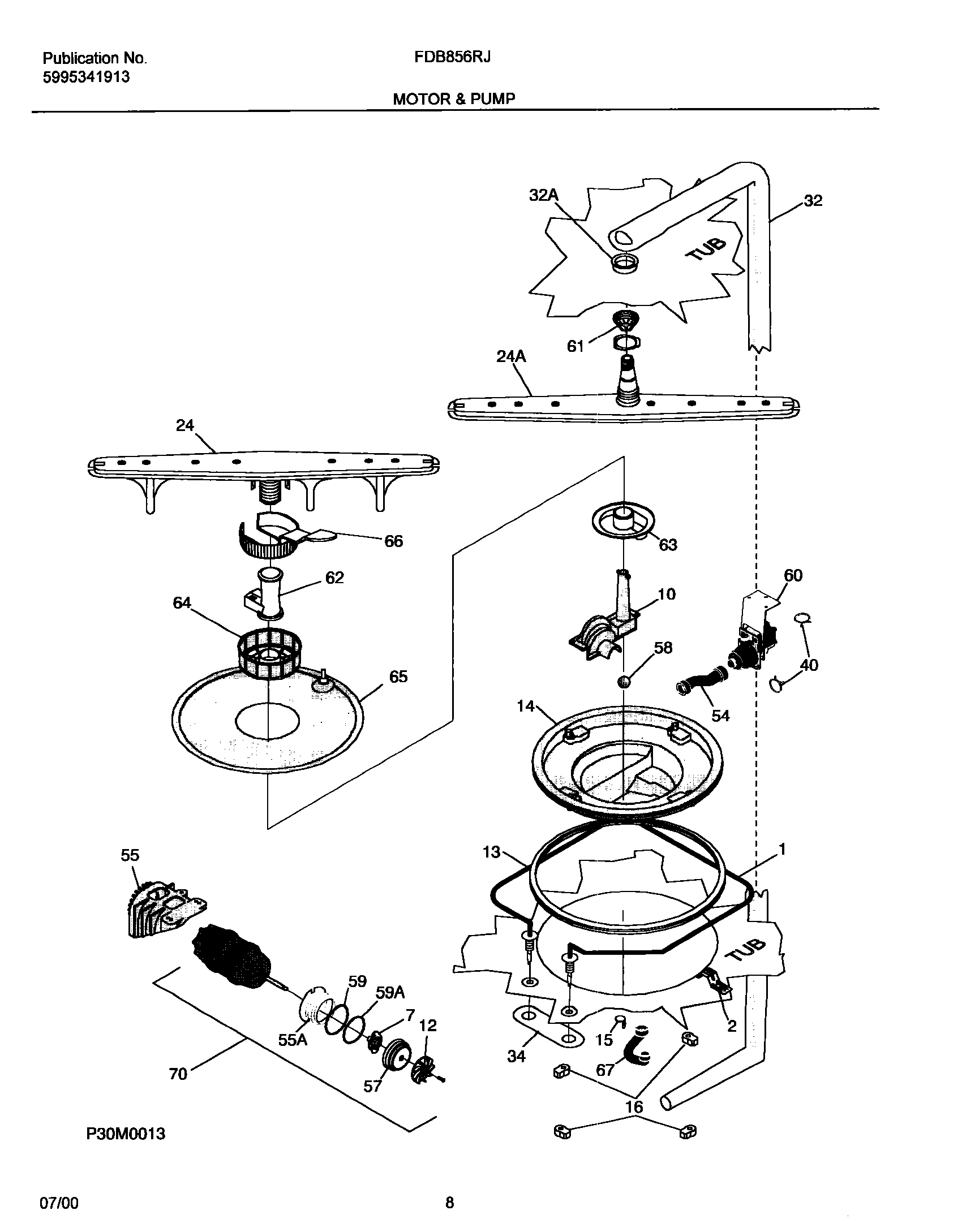

FDB856RJB0 09 – MOTOR AND PUMP

FDB856RJB0 09 – MOTOR AND PUMP

Written by

in

FDB856RJB0 09 – MOTOR AND PUMP

Products

PositionProduct
NIWCI 154200601
NIWCI 154338601
NIWCI 154329001
1154106202 Frigidaire Dishwasher Heater Nut
1154289801 Frigidaire Dishwasher Shield
1154665201 Frigidaire Dishwasher Heater
2WCI 154359701
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12SCREW, SS IMPELLER (NOT ILLUSTRATED)
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154365902
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24A154313601 Frigidaire Dishwasher Control Arm P1
24AWCI 154252001
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32A154406401 Frigidaire Delivery Tube Gasket
34WCI 154064901
40154348401 Frigidaire Dishwasher Clamp
40WCI 154348501
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154325701
55AWCI 154246201
55WCI 5303316032
57WCI 154246001
57WCI 154246101
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247502
60BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
61WCI 154359601
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70154754901 Frigidaire Dishwasher Screw
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
