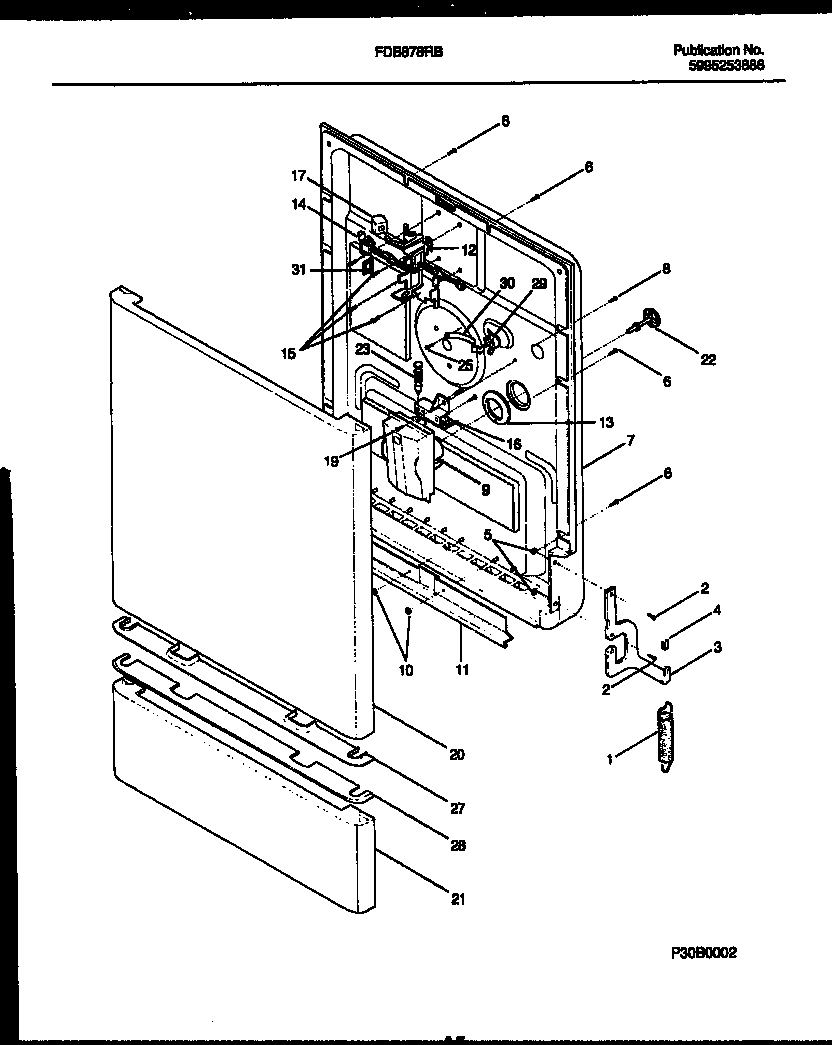

FDB878RBT0 04 – DOOR PARTS

Products

Position	Product
1	DOOR SPRING
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	WCI 5303270031
4	WCI 5300805884
5	5303013272 Frigidaire Oven Nut
7	WCI 154196902
8	SCREW-8 X 5/8`` (2)
9	WCI 5300806753
10	WCI 154026601
11	WCI 5300809773
12	WCI 154132502
13	WCI 5300805631
14	WCI 154105301
15	218781101 Frigidaire Handle Screw
16	WCI 5300809782
17	LATCH - KNOB - ALMOND
19	WCI 5300807501
20	DOOR-PANEL-ALMOND
21	ACCESS-PANEL-ALMOND
22	WCI 5303943094
23	WCI 5300809898
25	154419403 Frigidaire Dishwasher Screw
27	WCI 154189402
27A	WCI 15414401
28A	CLIP-ATTACH (4) (NON-ILLUSTRATED)
28	TRIM-ACCESS TOP-ALMOND
29	WCI 5303297402
30	THERMOSTAT RETAINER
31	WCI 154142901
