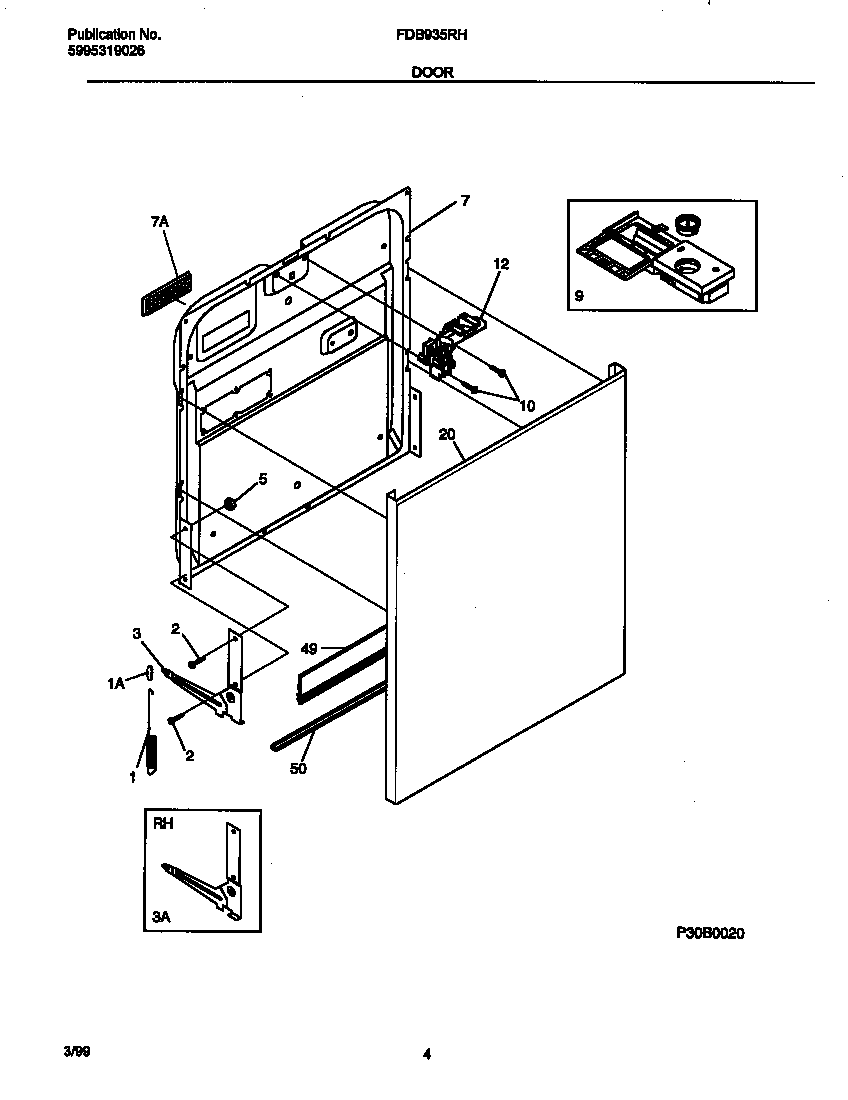

FDB935RHB0 03 – DOOR

Products

Position	Product
*58727	SCREW-8 X 5/8“ (2)
*58726	INSULATION,DOOR
*58725	WCI 154200601
*58724	PIN-ARM (NOT ILLUSTRATED)
1	154430501 Frigidaire Dishwasher Door Spring
1	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7	WCI 154226601
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154292603
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
