FDB935RHS0 04 – TUB

FDB935RHS0 04 – TUB

Written by

in

FDB935RHS0 04 – TUB

Products

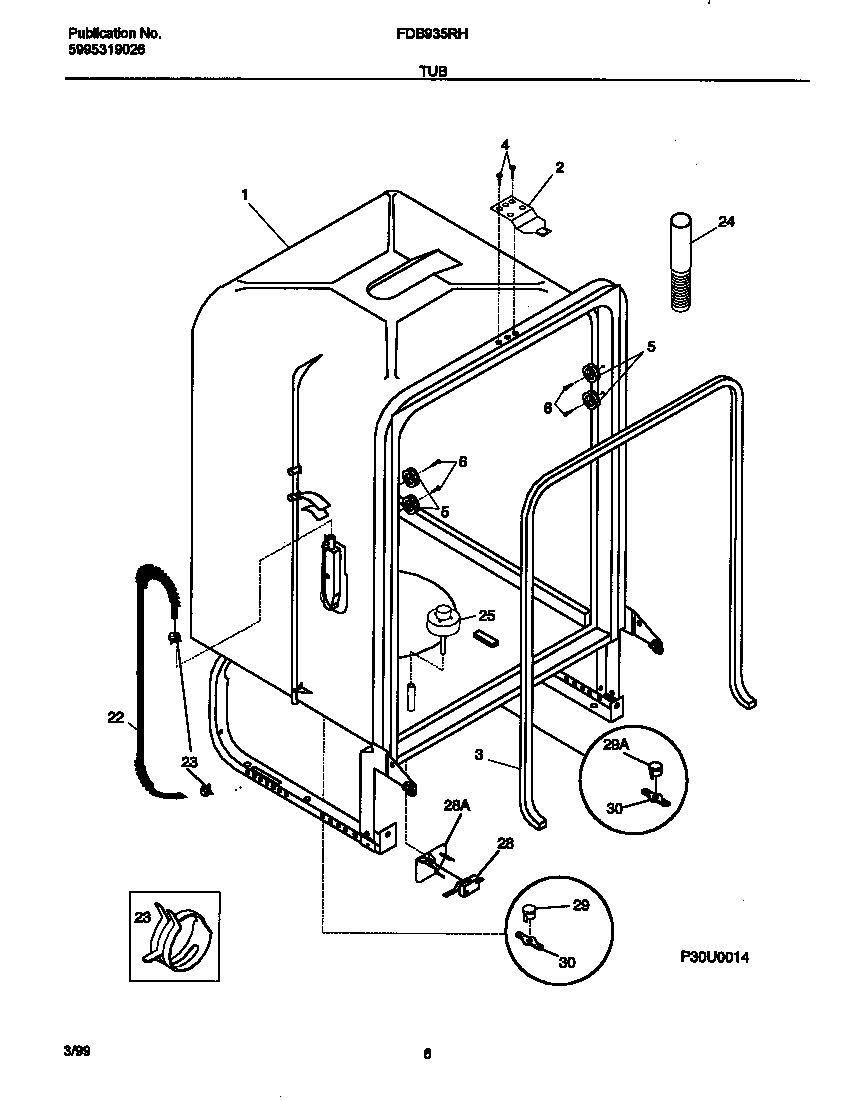

PositionProduct
*58729154297701 Frigidaire Dishwasher Screw
*58728154200701 Frigidaire Dishwasher Screw
*58731154641601 Frigidaire Dishwasher Insulation
*58730808690701 Frigidaire Dishwasher Screw
*587325304520581 Frigidaire Dishwasher Insulation
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 154200602
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
28FLOAT SWITCH ASSY
29154290204 Frigidaire Dishwasher Thermostat
29154753101 Frigidaire Dishwasher Thermistor
30154241101 Frigidaire Dishwasher Retainer
