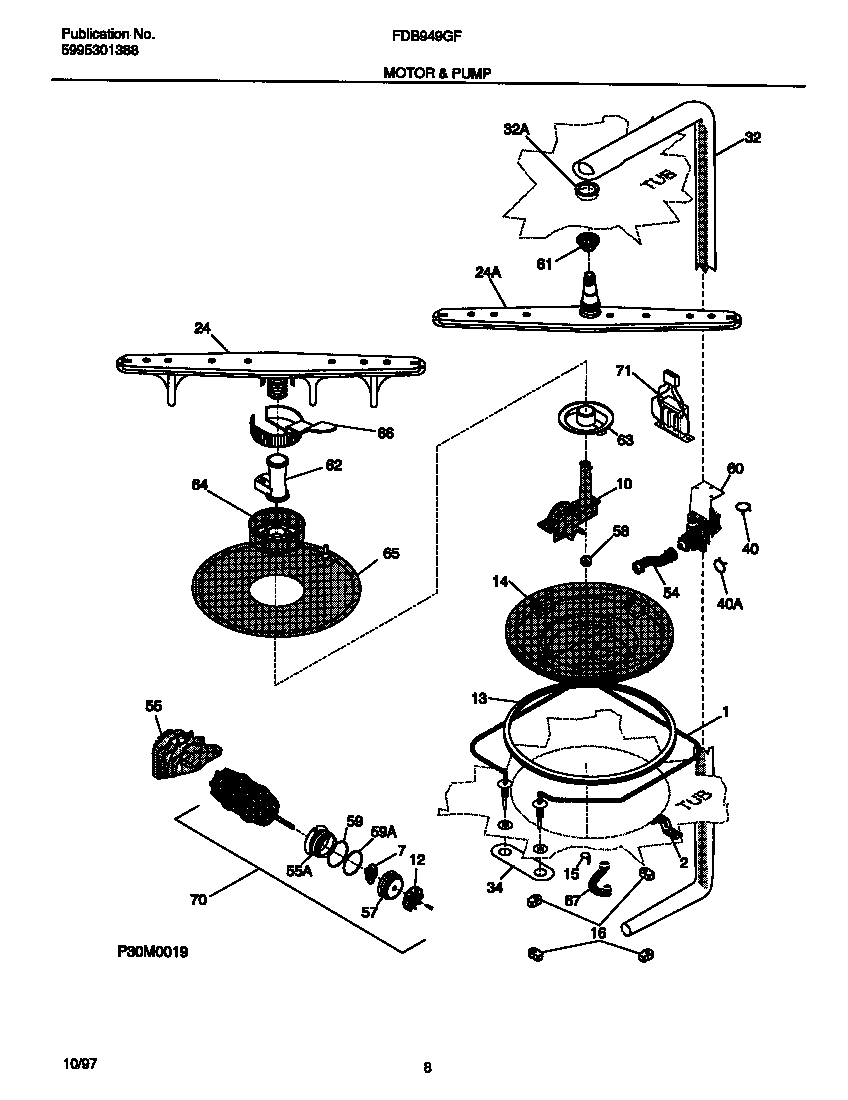

FDB949GFB1 05 – MOTOR & PUMP

FDB949GFB1 05 – MOTOR & PUMP

Written by

in

FDB949GFB1 05 – MOTOR & PUMP

Products

PositionProduct
*60498WCI 154247201
*60502WCI 154200601
*60497CLAMP, HOSE
*60500154754901 Frigidaire Dishwasher Screw
*60501WCI 5303316032
*60499WCI 154247401
1C154289801 Frigidaire Dishwasher Shield
1A154665201 Frigidaire Dishwasher Heater
1B154106202 Frigidaire Dishwasher Heater Nut
2AWCI 154211001
2BSCREW-BRACKET (2)
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12AWCI 154245801
12BSCREW, SS IMPELLER (NOT ILLUSTRATED)
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24154313601 Frigidaire Dishwasher Control Arm P1
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154348401 Frigidaire Dishwasher Clamp
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
57AWCI 154246001
57BWCI 154246101
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60AWCI 154247501
60BBRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
71WCI 154289901
