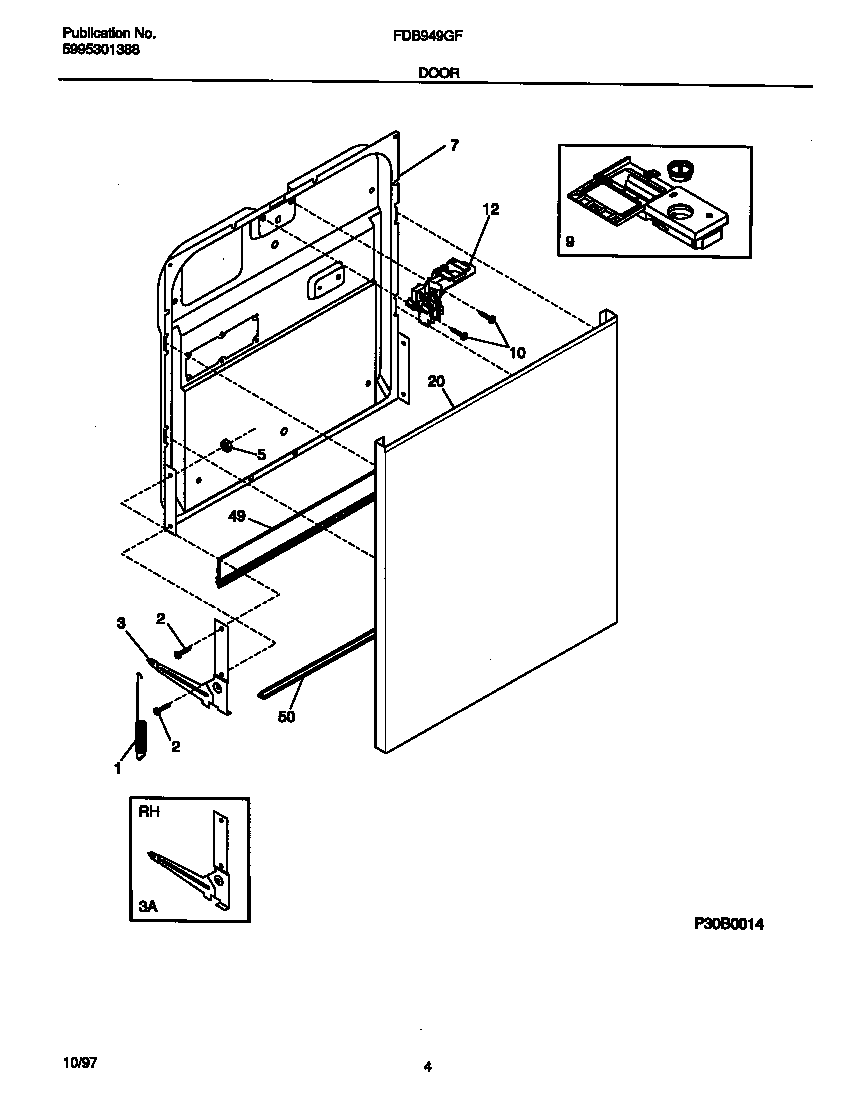

FDB949GFS1 03 – DOOR

FDB949GFS1 03 – DOOR

Written by

in

FDB949GFS1 03 – DOOR

Products

PositionProduct
*60490154419403 Frigidaire Dishwasher Screw
*60489WCI 154298101
*60491INSULATION,DOOR
*60488PIN-ARM (NOT ILLUSTRATED)
*60492SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10AWCI 154200601
10BSCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154292601
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
