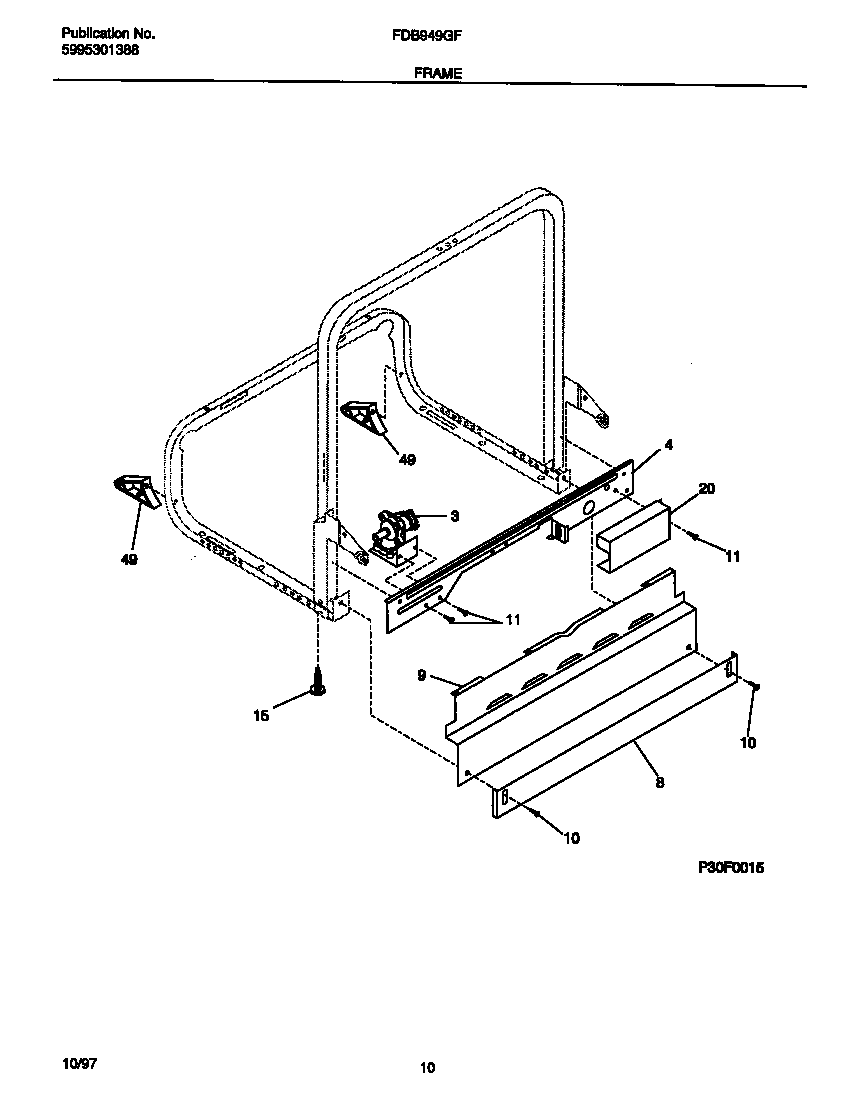

FDB949GFS1 06 – FRAME

FDB949GFS1 06 – FRAME

Written by

in

FDB949GFS1 06 – FRAME

Products

PositionProduct
*60506WCI 154290305
*60505WCI 154290101
*60504WCI 154290001
*605085300807373 Frigidaire WASHER
*60509SCREW-8 X 5/8“ (2)
*60507WCI 5300807270
*60503808690701 Frigidaire Dishwasher Screw
*60510WCI 154200601
3154637401 Frigidaire Dishwasher Fill Valve Water
45304508587 Frigidaire Dishwasher Brace
8154745503 Frigidaire Dishwasher Toe Panel
9A5304501484 Frigidaire Dishwasher Assembly Toekick Plate
9BWCI 154249301
10154419403 Frigidaire Dishwasher Screw
11154294701 Frigidaire Dishwasher Screw
15WCI 154210901
20WCI 154209601
49WCI 154227401
