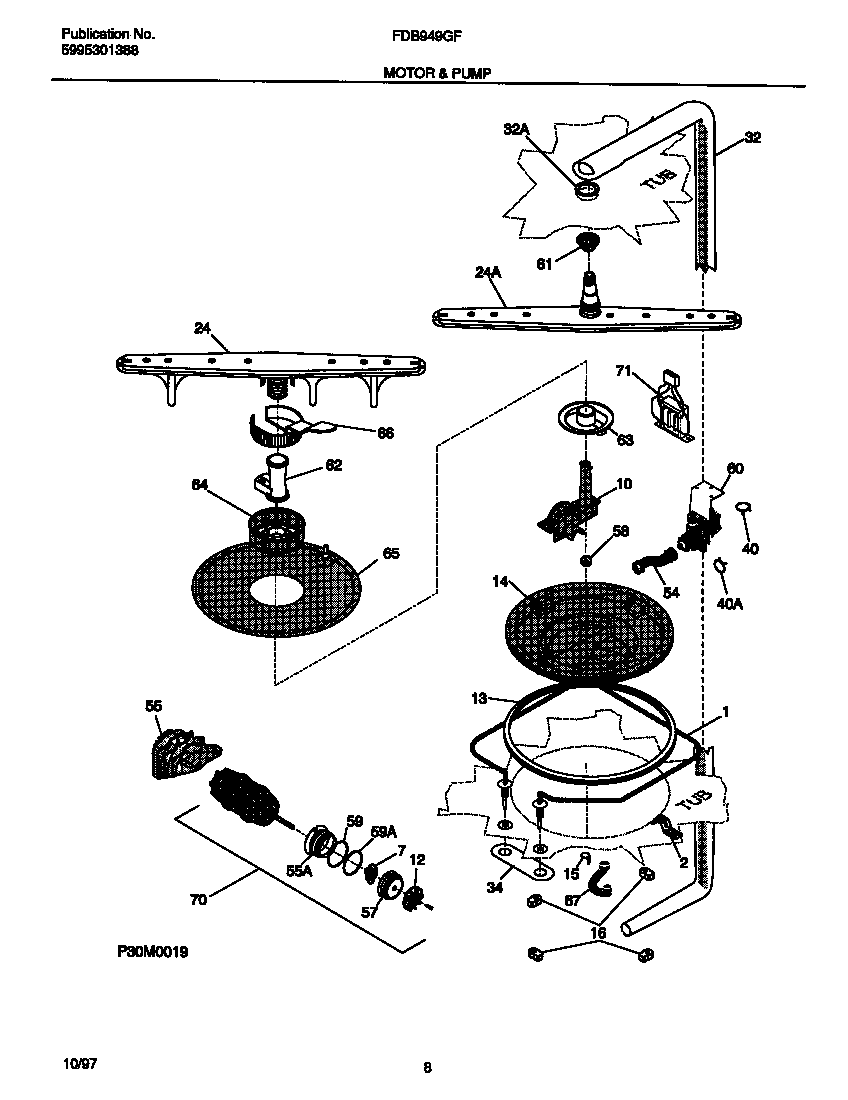

FDB949GFT1 05 – MOTOR & PUMPadmin2025-04-26T08:59:02+00:00FDB949GFT1 05 – MOTOR & PUMP
Products
| Position | Product |
|---|
| *60498 | WCI 154247201 |
| *60502 | WCI 154200601 |
| *60497 | CLAMP, HOSE |
| *60500 | 154754901 Frigidaire Dishwasher Screw |
| *60501 | WCI 5303316032 |
| *60499 | WCI 154247401 |
| 1C | 154289801 Frigidaire Dishwasher Shield |
| 1A | 154665201 Frigidaire Dishwasher Heater |
| 1B | 154106202 Frigidaire Dishwasher Heater Nut |
| 2A | WCI 154211001 |
| 2B | SCREW-BRACKET (2) |
| 7 | WCI 154245901 |
| 10 | 807145201 Frigidaire Dishwasher Cover-Volute |
| 12A | WCI 154245801 |
| 12B | SCREW, SS IMPELLER (NOT ILLUSTRATED) |
| 13 | 154246801 Frigidaire Dishwasher Primary Gasket |
| 14 | WCI 154245401 |
| 15 | WCI 154246701 |
| 16 | WCI 154246501 |
| 24 | 5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly |
| 24 | 154313601 Frigidaire Dishwasher Control Arm P1 |
| 32 | WCI 154251701 |
| 32 | WCI 154251601 |
| 34 | WCI 154064901 |
| 40 | 154348401 Frigidaire Dishwasher Clamp |
| 40 | 154611101 Frigidaire Dishwasher Clamp |
| 54 | 154234401 Frigidaire Dishwasher Hose P-1 |
| 55 | WCI 154246201 |
| 55 | WCI 154245601 |
| 57A | WCI 154246001 |
| 57B | WCI 154246101 |
| 58 | 154246402 Frigidaire Dishwasher P-1 BALL |
| 59 | 154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front |
| 59 | 154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor |
| 60A | WCI 154247501 |
| 60B | BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED) |
| 61 | WCI 154250201 |
| 62 | 5304518968 Frigidaire Lower Spray Arm Support |
| 63 | 5304506533 Frigidaire Dishwasher Filter Base |
| 65 | WCI 154283004 |
| 66 | 154252701 Frigidaire Dishwasher Filter Trap Assembly |
| 67 | WCI 154246601 |
| 70 | MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A |
| 71 | WCI 154289901 |
