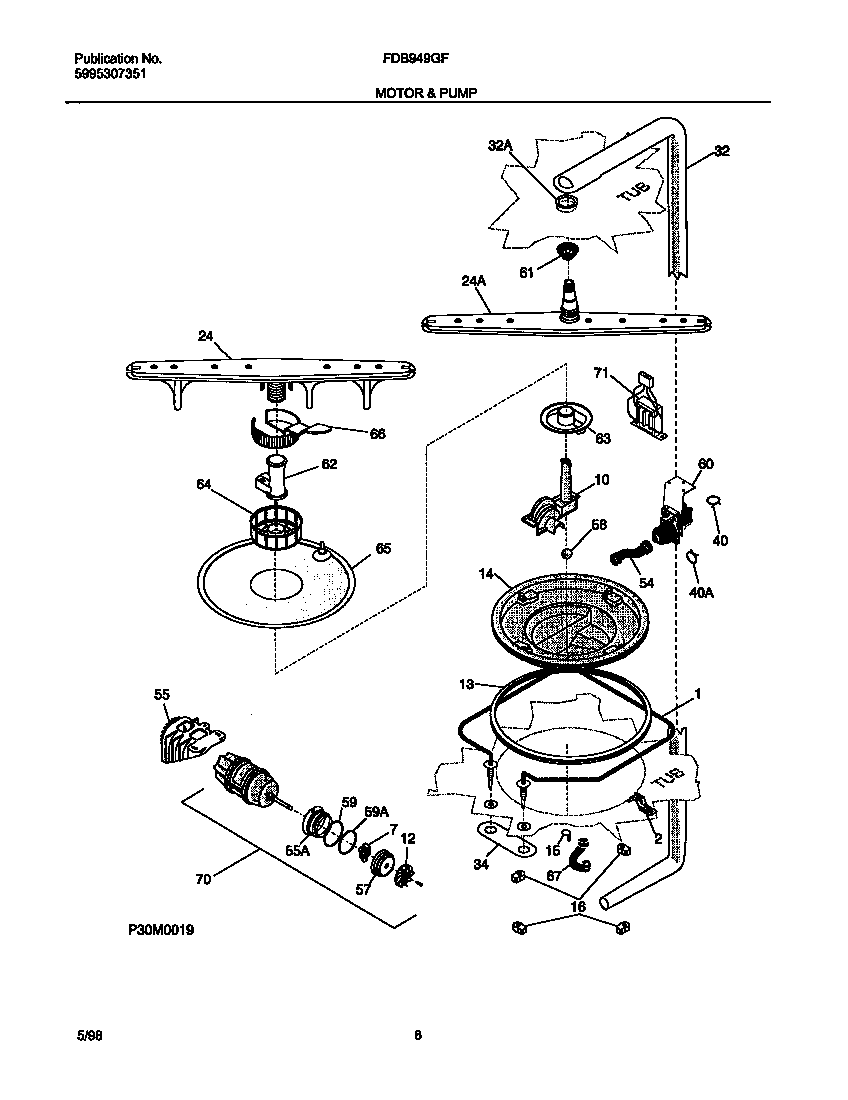

FDB949GFT2 05 – MOTOR AND PUMP

FDB949GFT2 05 – MOTOR AND PUMP

Written by

in

FDB949GFT2 05 – MOTOR AND PUMP

Products

PositionProduct
*54506WCI 154247201
*54509WCI 154329001
*54500WCI 154246101
*54501BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*54495154106202 Frigidaire Dishwasher Heater Nut
*54496154289801 Frigidaire Dishwasher Shield
*54508154754901 Frigidaire Dishwasher Screw
*54503WCI 154289901
*54510WCI 5303316032
*54507WCI 154247401
*54497SCREW-BRACKET (2)
*54504154241101 Frigidaire Dishwasher Retainer
*54505CLAMP, HOSE
*54502WCI 154200601
*54499WCI 154252001
*54498SCREW, SS IMPELLER (NOT ILLUSTRATED)
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251601
32WCI 154251701
34WCI 154064901
40B154348401 Frigidaire Dishwasher Clamp
40A154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283003
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
