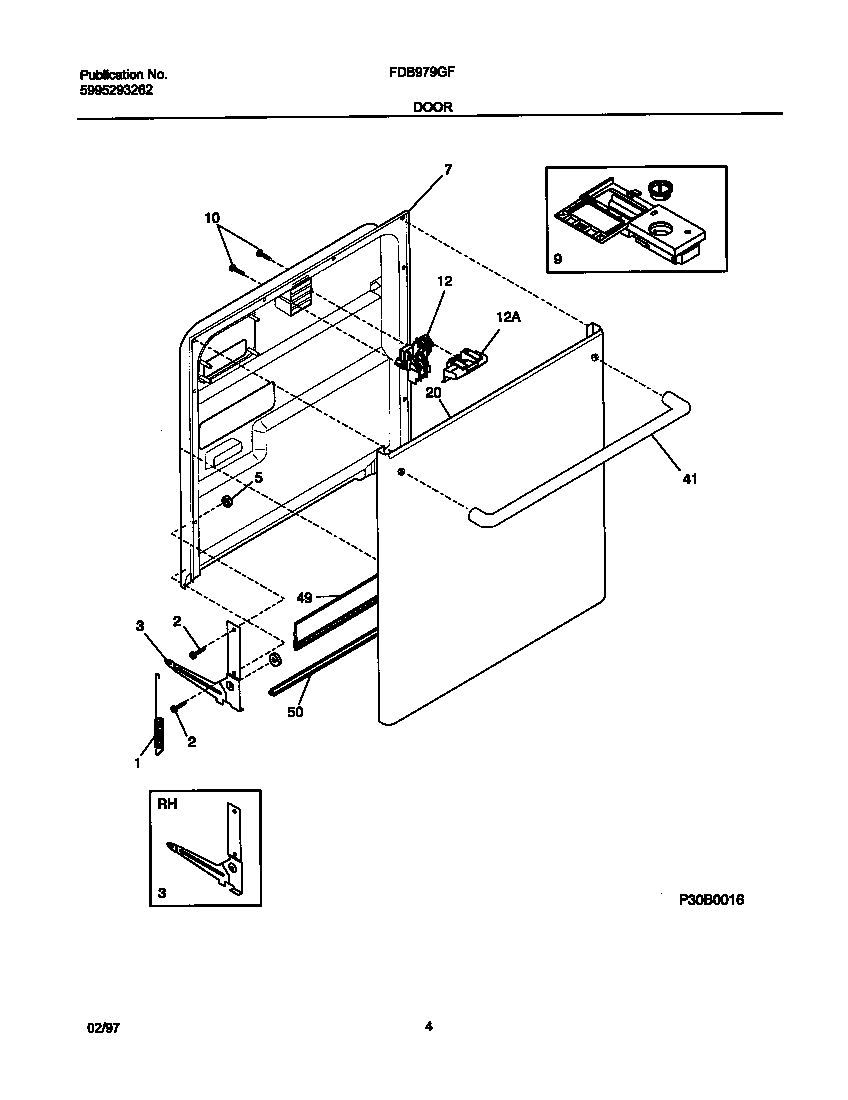

FDB979GFW0 03 – DOOR

FDB979GFW0 03 – DOOR

Written by

in

FDB979GFW0 03 – DOOR

Products

PositionProduct
*89288WCI 154200601
*89289WCI 154213801
*89285PIN-ARM (NOT ILLUSTRATED)
*89290SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299001
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154292604
41WCI 154207004
49WCI 154244701
50WCI 154211401
