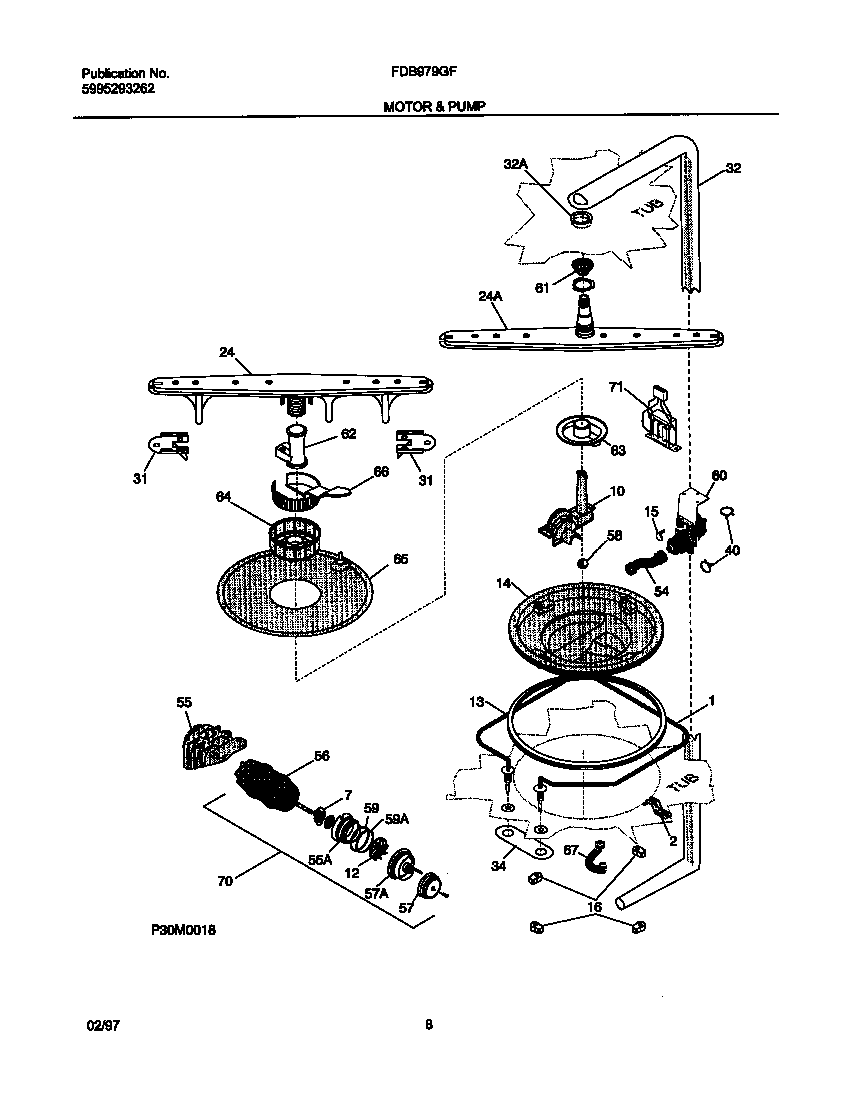

FDB979GFW2 05 – MOTOR & PUMP

Written by

Products

Position	Product
*89303	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*89299	SCREW-BRACKET (2)
*89307	WCI 154247401
*89306	154348401 Frigidaire Dishwasher Clamp
*89302	154754901 Frigidaire Dishwasher Screw
*89298	154289801 Frigidaire Dishwasher Shield
*89297	154106202 Frigidaire Dishwasher Heater Nut
*89300	SCREW, SS IMPELLER (NOT ILLUSTRATED)
*89305	WCI 154247201
*89308	WCI 5303316032
*89301	WCI 154252001
*89304	CLAMP, HOSE
1	154665201 Frigidaire Dishwasher Heater
2	WCI 154211001
7	WCI 154245901
10	807145201 Frigidaire Dishwasher Cover-Volute
12	WCI 154245801
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154245401
15	WCI 154246701
16	WCI 154246501
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24A	154313601 Frigidaire Dishwasher Control Arm P1
31A	WCI 154281001
32	WCI 154251701
32A	WCI 154251601
34	WCI 154064901
40	154611101 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55A	WCI 154246201
55	WCI 154245601
57	WCI 154246001
57A	WCI 154246101
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	WCI 154247501
61	WCI 154250201
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	WCI 154283003
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
67	WCI 154246601
70	WCI 154291501
71	WCI 154289901
