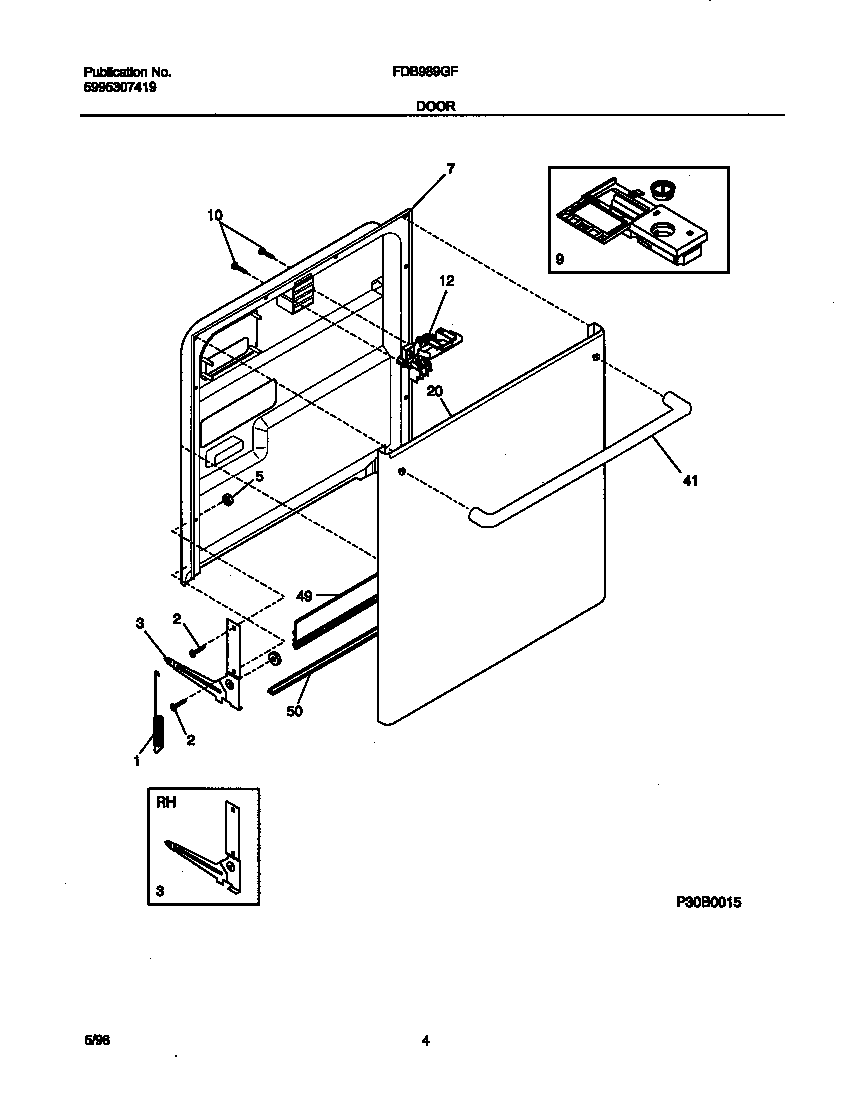

FDB989GFC2 03 – DOOR

Products

Position	Product
*55251	SCREW-8 X 5/8“ (2)
*55247	Screw,shoulder
*55250	INSULATION,DOOR
*55248	WCI 154200601
*55249	WCI 154213801
*55245	154325201 Frigidaire Linkage Spring
*55246	PIN-ARM (NOT ILLUSTRATED)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154284204
41	WCI 154207004
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
