Aparts

FDB989GFC2 04 – TUB

FDB989GFC2 04 – TUB

Written by

in

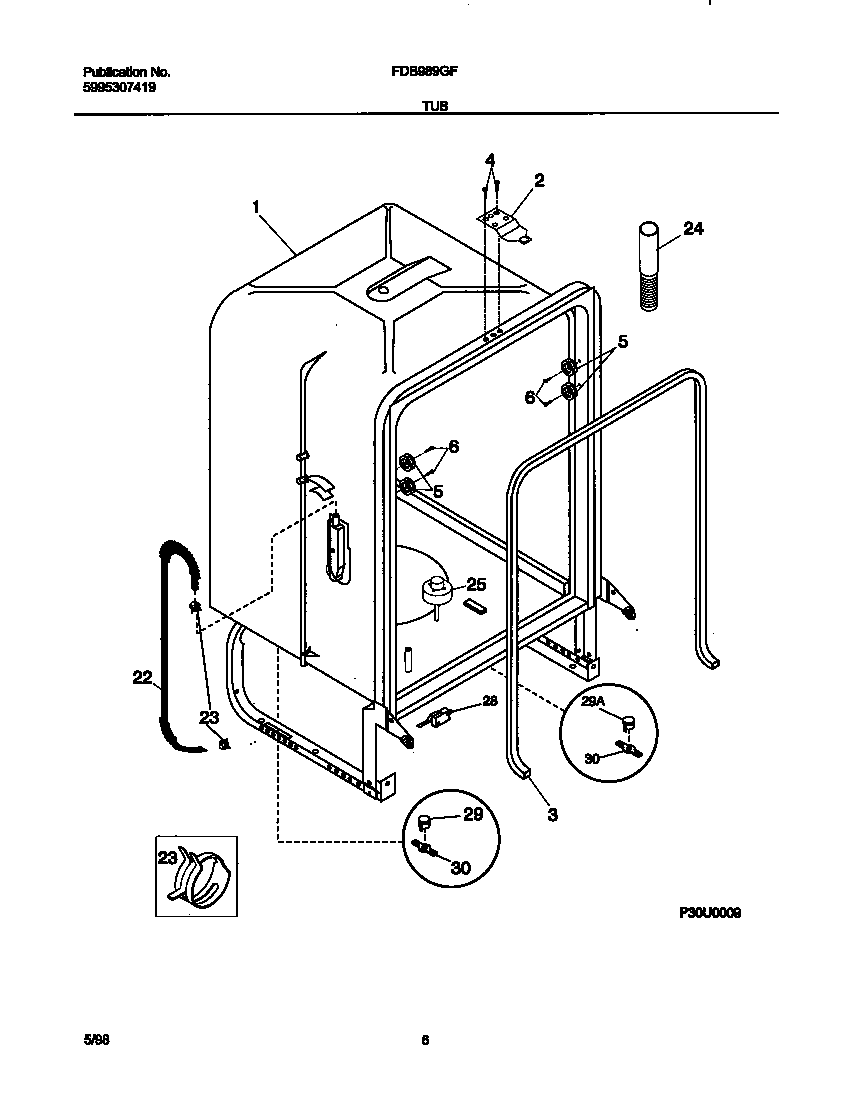

FDB989GFC2 04 – TUB

Products

PositionProduct
*55258WCI 154249402
*55252154200701 Frigidaire Dishwasher Screw
*55255808690701 Frigidaire Dishwasher Screw
*55254154297701 Frigidaire Dishwasher Screw
*55253FLOAT SWITCH ASSY
*55256154641601 Frigidaire Dishwasher Insulation
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 5300807270
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
29154753101 Frigidaire Dishwasher Thermistor
29154290204 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
