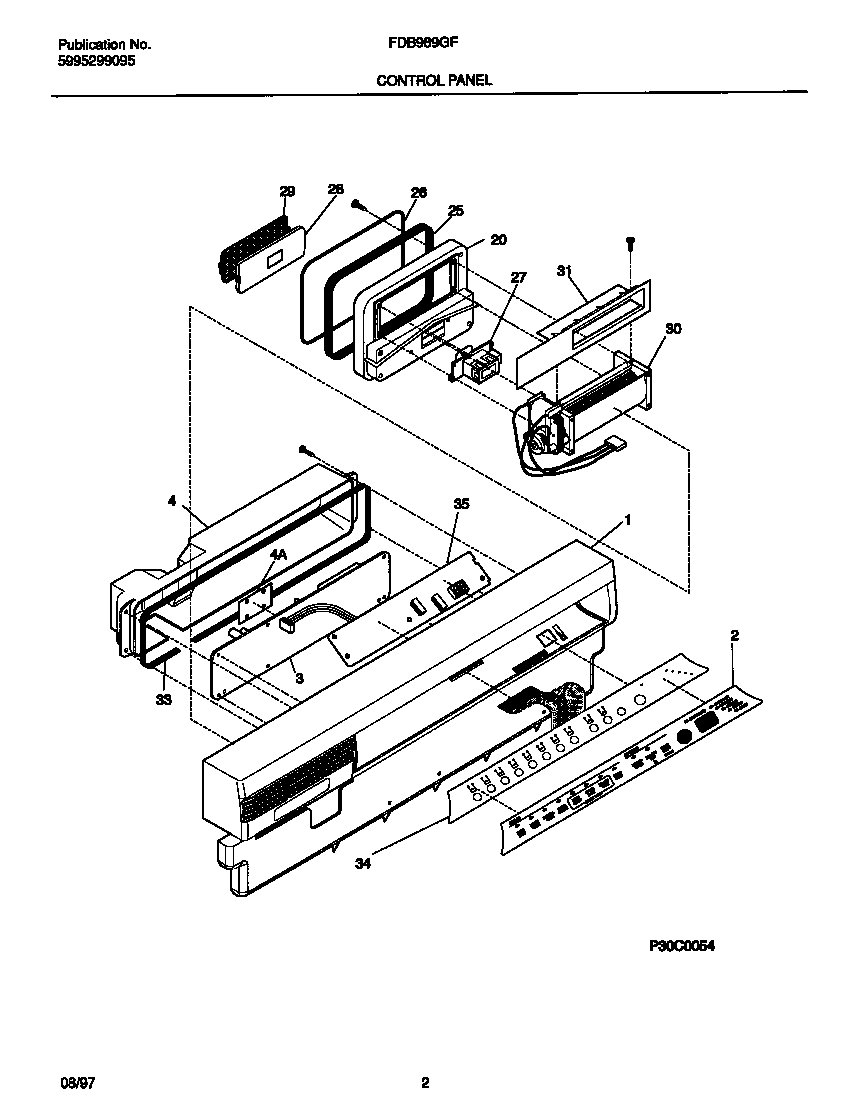

FDB989GFW0 02 – CONTROL PANEL

Products

PositionProduct
*46125WCI 5300809055
*46124WCI 154302401
*46122WIRING HARNESS,MAIN
*46126SCREW,TRUSS HEAD ,8,1.5“ ,STAINLESS STEEL
*46121WCI 154283901
*46120WCI 154200401
1WCI 154253101
2INSERT-CONTROL PANEL,WHITE
3WCI 154227703
4WCI 154287901
4WCI 154301301
20WCI 154228301
26WCI 154240501
26WCI 154229201
27WCI 154226701
28WCI 154226901
29WCI 154226401
30WCI 154226802
31WCI 154228101
33WCI 154292402
34WCI 154251301
35WCI 154227901
