FDE216RBS0 04 – CONSOLE AND CONTROL PARTS

FDE216RBS0 04 – CONSOLE AND CONTROL PARTS

Written by

in

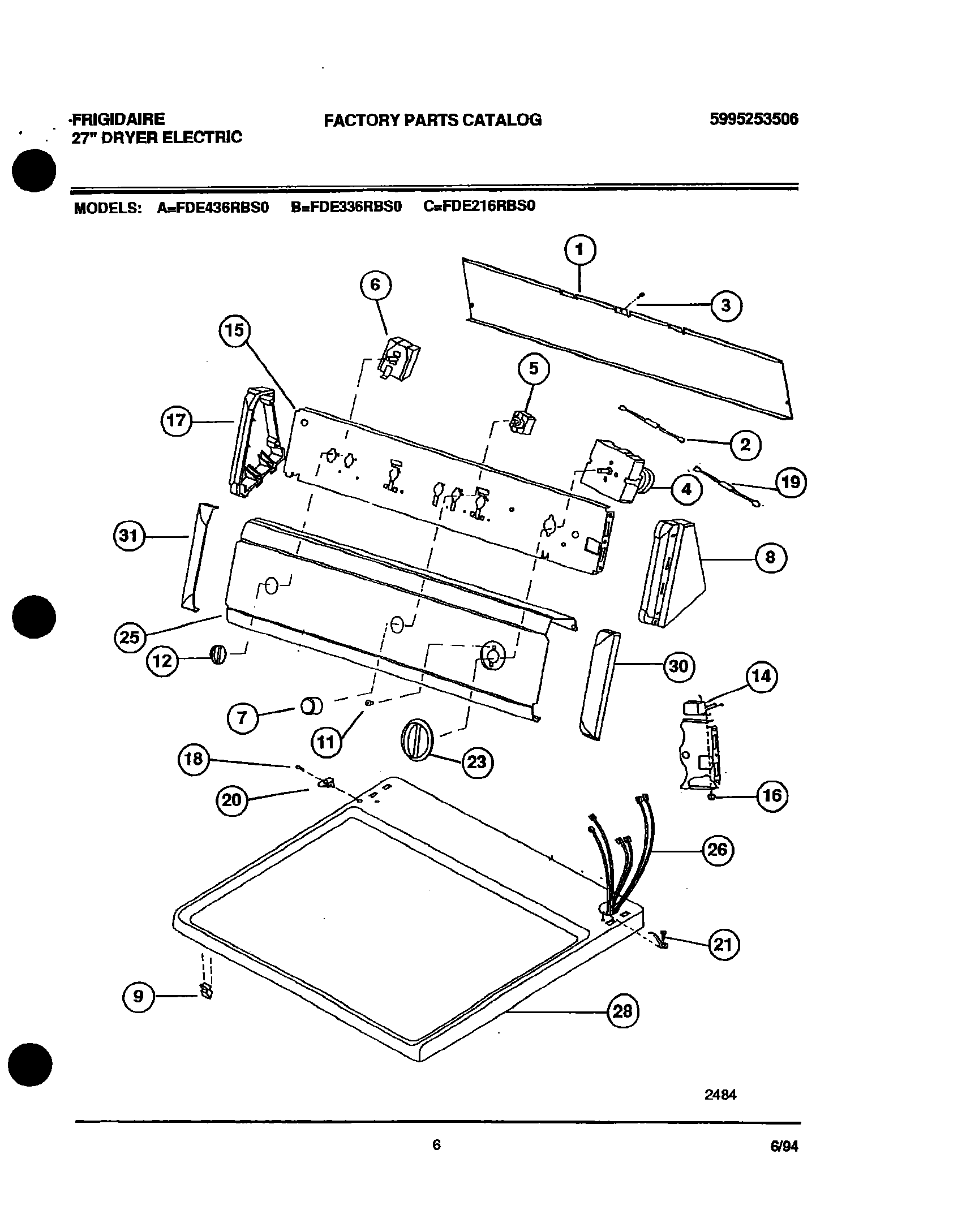

FDE216RBS0 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
45303297177 Frigidaire Dryer Control Timer
5WCI 131048000
7WCI 131141301
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17END CAP-L.H.-WHITE
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131280300
26WCI 131255900
28PANEL-TOP-WHITE
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
