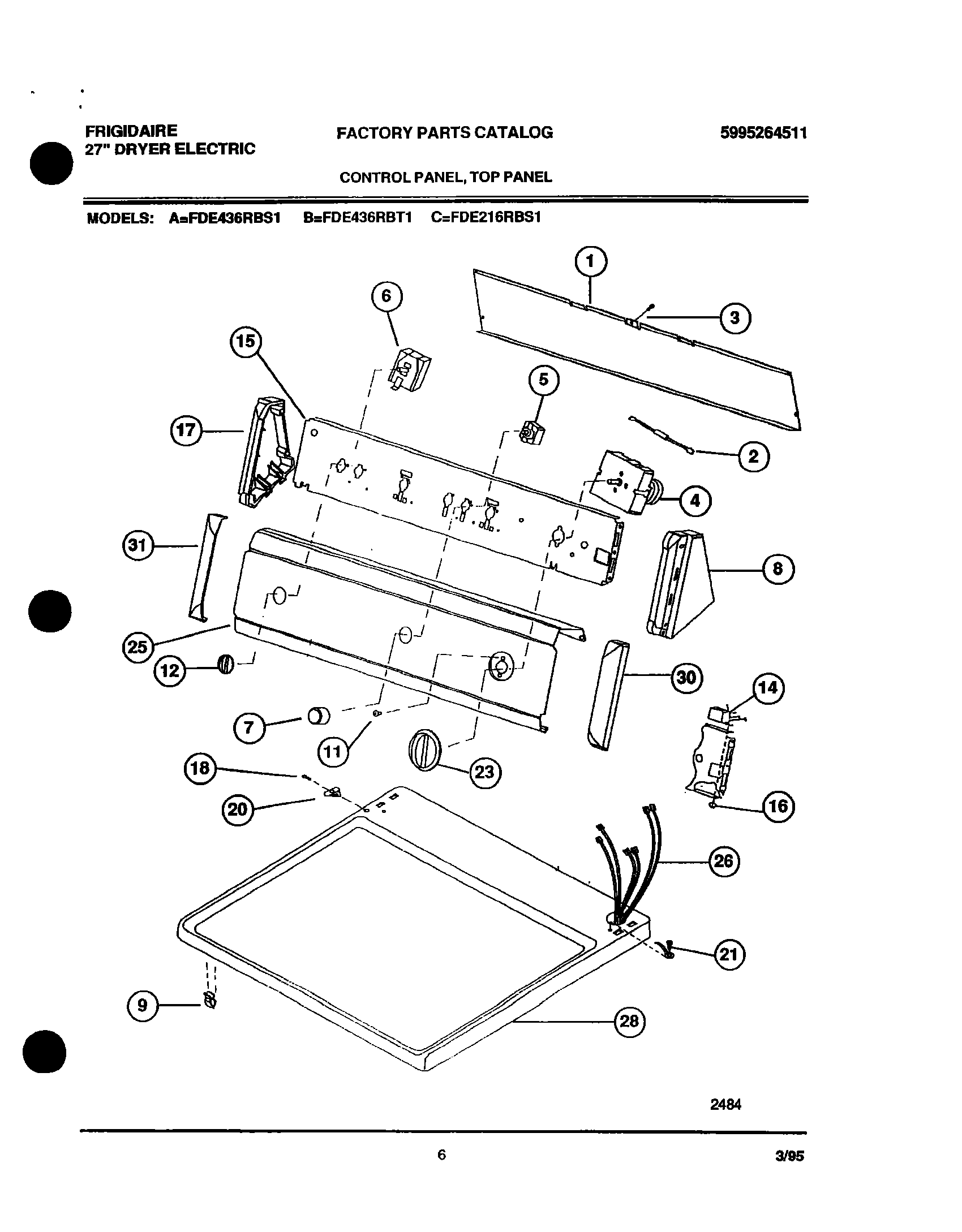

FDE216RBS1 07 – CONTROL PANEL

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	5303297177 Frigidaire Dryer Control Timer
5	WCI 131048000
7	WCI 131141301
8	END CAP-R.H.-WHITE
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
15	WCI 131297306
17	END CAP-L.H.-WHITE
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	134011703 Frigidaire Dryer Timer Knob
25	WCI 131280300
26	WCI 131255900
28	WCI 131130402
30	COVER-CAP-RH-WHITE
31	COVER-CAP-LH-WHITE
