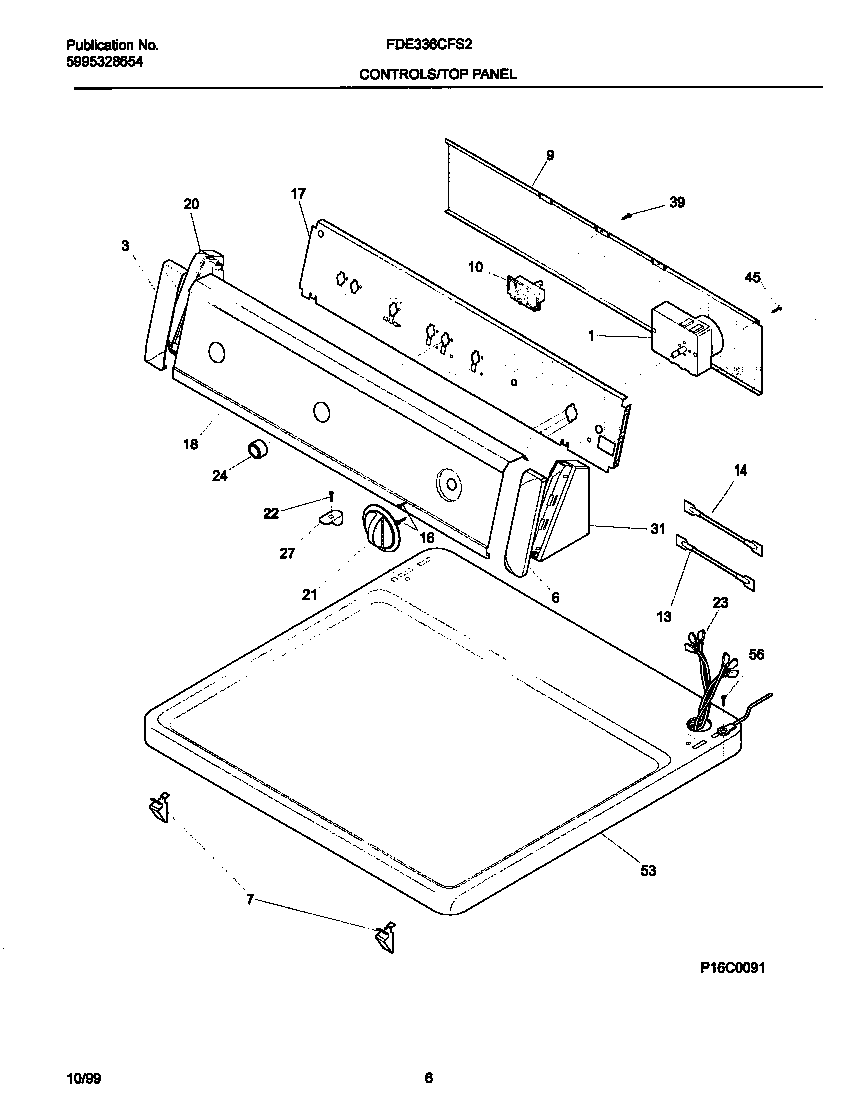

FDE336CFS2 04 – P16C0091 CONTROL PANEL

Products

Position	Product
1	131062300 Frigidaire Timer
3	COVER-CAP-LH-WHITE
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	131469000 Frigidaire Switch-Push/Start P1
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131582300
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131844900
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
