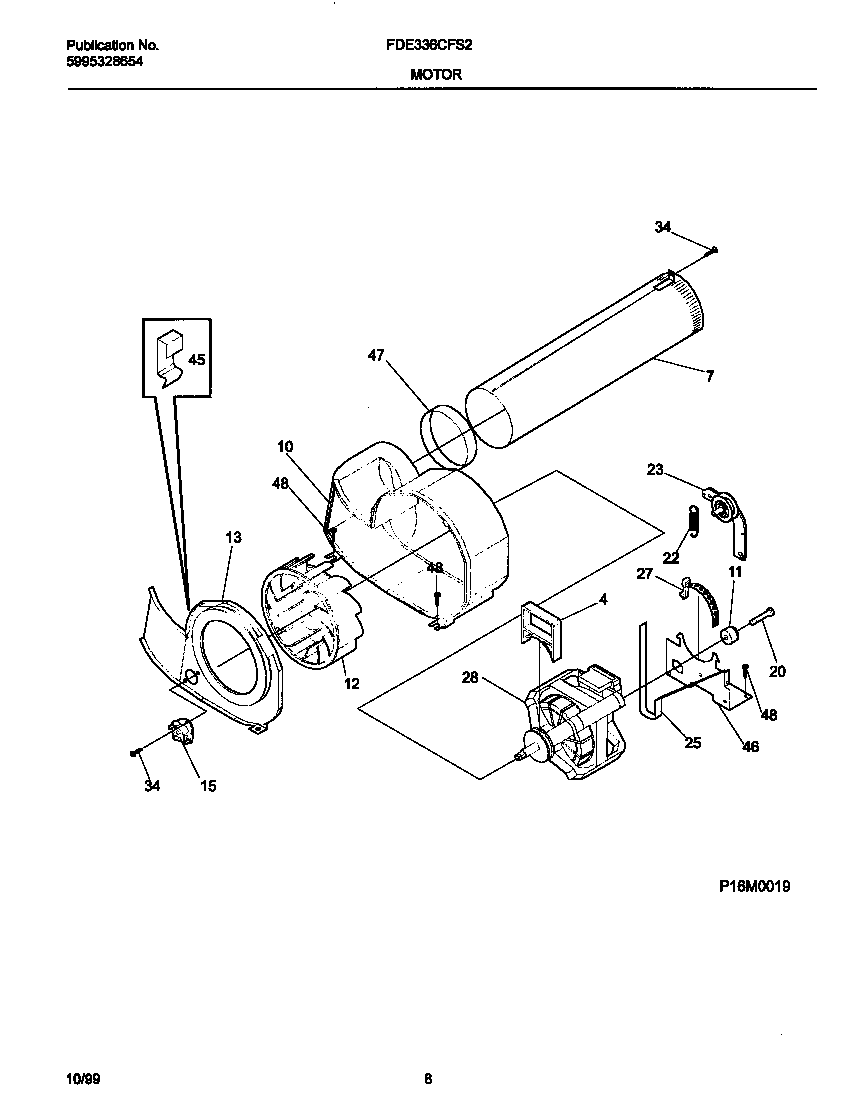

FDE336CFS2 05 – P16M0019 MOTOR,BLOWER

Products

Position	Product
*08886	Tube,exhaust ,side/bottom ,Optional Kit
4	131435200 Frigidaire Fan Housing Lock
7	Tube,exhaust ,rear ,w/mtg bracket
11	131749800 Frigidaire Spacer
13	131967600 Frigidaire Blower Kit
15	131298300 Frigidaire Thermostat Control
20	131017900 Frigidaire Screw
22	131601000 Frigidaire Idler Spring Assembly
23	131863007 Frigidaire Washer Idler Pulley Assembly
25	134503600 Frigidaire Dryer Belt
27	WCI 131419800
28	131560100 Frigidaire Dryer Drive Motor with Pulley
34	131243700 Frigidaire Screw
45	WCI 131618200
46	WCI 131601100
47	WCI 131633300
48	131168200 Frigidaire Dryer Screw
