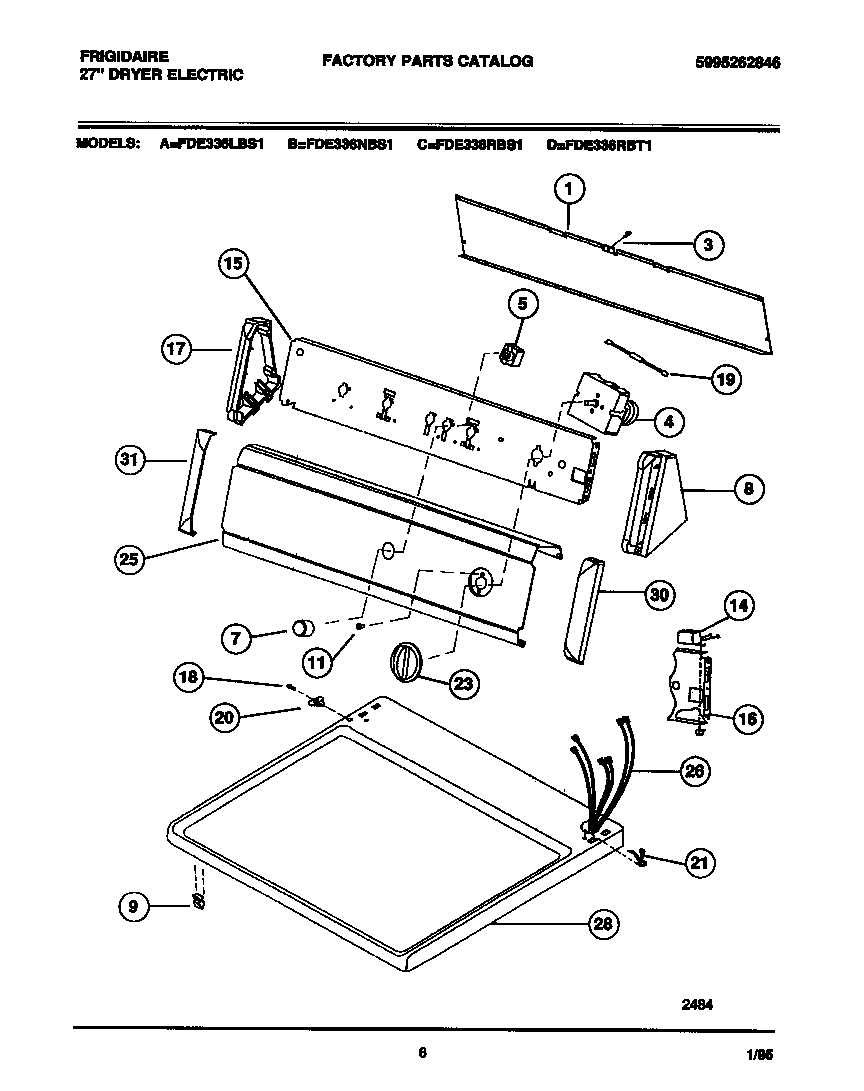

FDE336NBS1 04 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	TIMER-DRYER
5	WCI 131048000
7	WCI 131141301
8	END CAP-R.H.-WHITE
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	END CAP-L.H.-WHITE
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	134011703 Frigidaire Dryer Timer Knob
25	PANEL-CONTROL, GRAY
26	WCI 131235100
28	WCI 131130402
30	COVER-CAP-RH-WHITE
31	COVER-CAP-LH-WHITE
