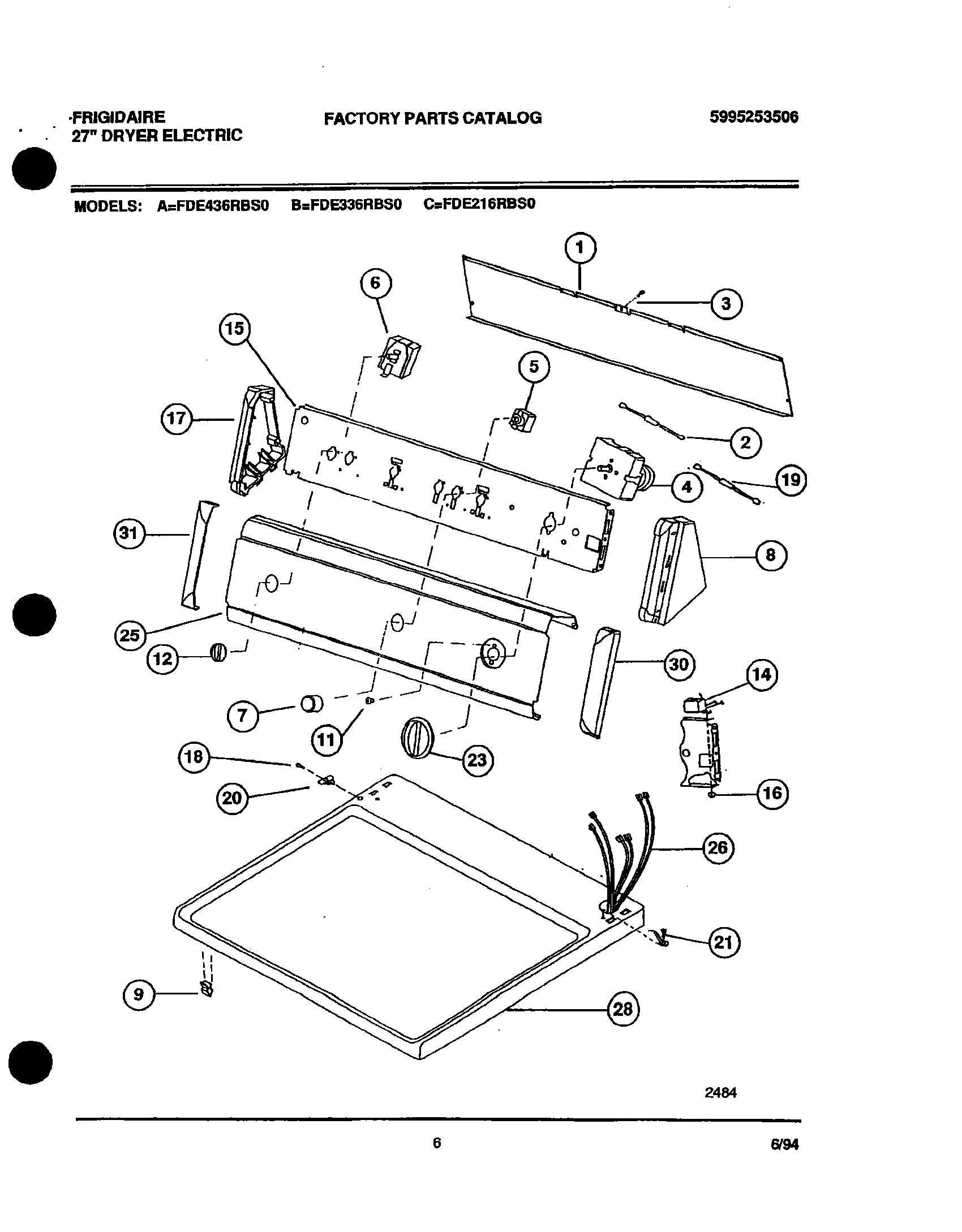

FDE336RBT0 03 – CONSOLE, CONTROLS, TOP PANEL

FDE336RBT0 03 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

FDE336RBT0 03 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1BACKSHEET
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
5WCI 131048000
7WCI 131141302
8WCI 131122702
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17WCI 131122712
18WCI 5303289526
19RESISTOR, 3.0K
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131141002
25WCI 131280500
26WCI 131235100
28WCI 131130304
30WCI 131122602
31WCI 131122612
