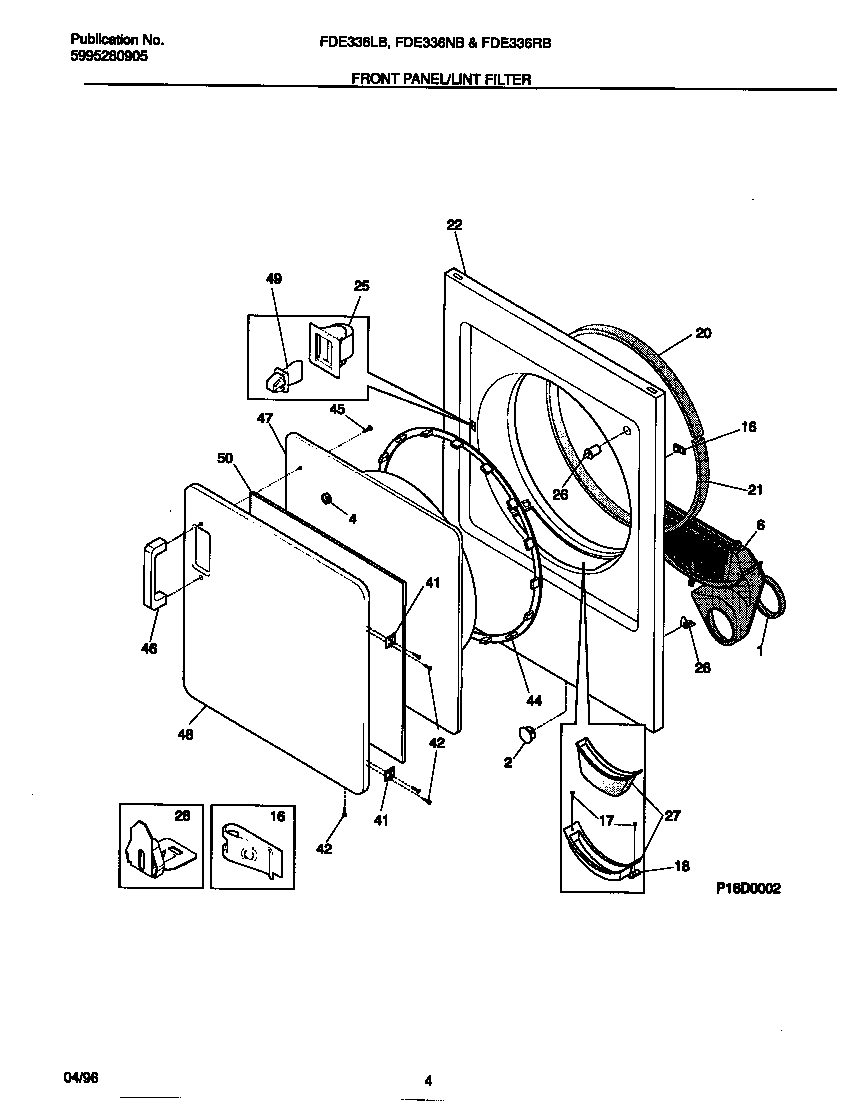

FDE336RBT2 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
1	134417000 Frigidaire Seal
2	WCI 131432301
4	WCI 3201205
6	DUCT-AIR
16	WCI 131063700
17	131420300 Frigidaire Screw
18	CLIP
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	WCI 5303281049
22	PANEL, FRONT, ALMOND
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	WCI 131390300
28	CLIP GUIDE (4)
41	HINGE, DOOR (2)
42	134156200 Frigidaire Screw
44	GASKET, DOOR
45	WCI 5303281051
46	WCI 131192302
47	WCI 5303318707
48	WCI 5303299162
49	5303207102 Frigidaire Door Strike
50	SHIELD, HEAT
