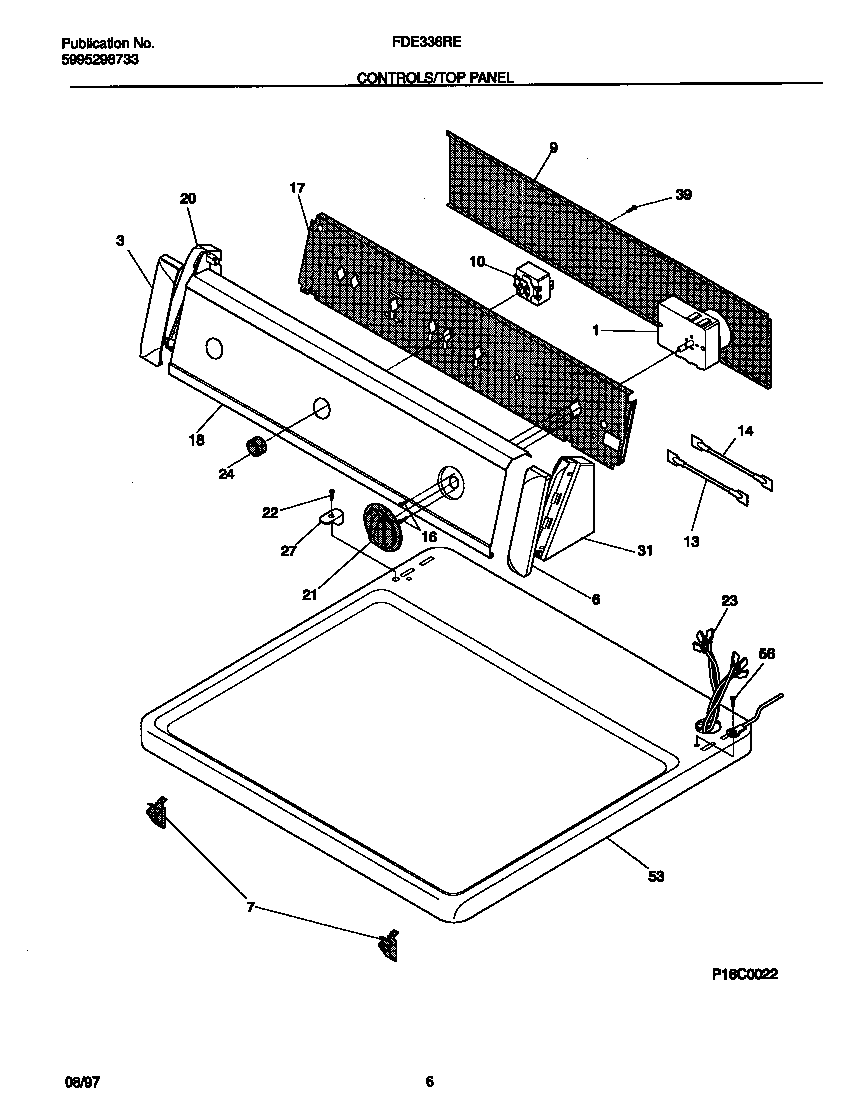

FDE336RET1 04 – CONTROLS/TOP PANEL

FDE336RET1 04 – CONTROLS/TOP PANEL

Written by

in

FDE336RET1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
1131062300 Frigidaire Timer
3WCI 131122612
6WCI 131122602
73205821 Frigidaire Clip
9BACKSHEET
10131469000 Frigidaire Switch-Push/Start P1
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131280500
20WCI 131122712
21WCI 131141002
22WCI 131266300
23WCI 131515400
24WCI 131111504
27CLIP-CONSOLE MTG
31WCI 131122702
39131205100 Frigidaire Screw
53WCI 131601319
56131243800 Frigidaire Screw
