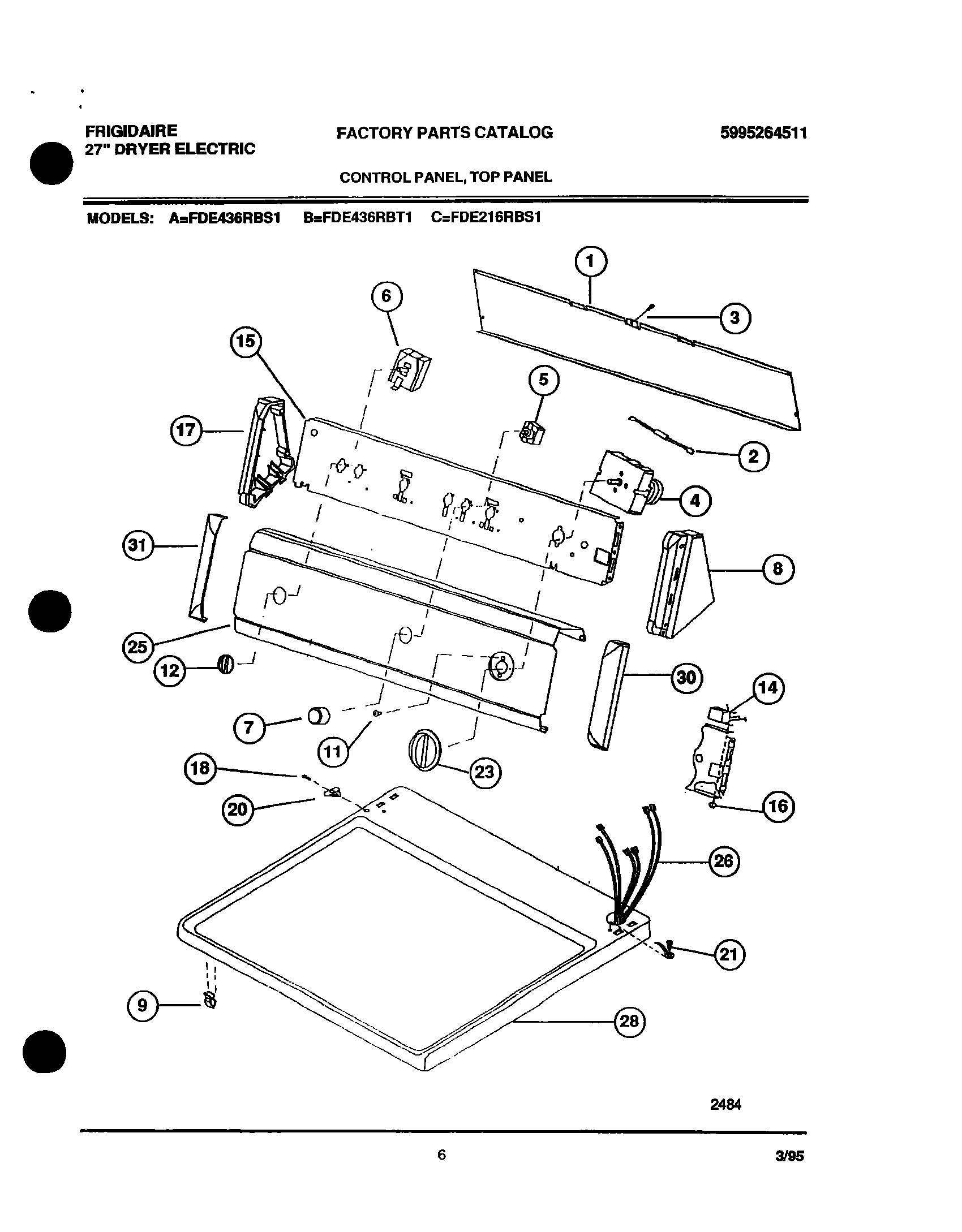

FDE436RBT1 07 – CONTROL PANEL

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	5303297177 Frigidaire Dryer Control Timer
5	WCI 131048000
6	WCI 131259200
7	WCI 131141302
8	WCI 131122702
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131141102
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 131122712
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	WCI 131141002
25	WCI 131280700
26	WCI 131266400
28	WCI 131130404
30	WCI 131122602
31	WCI 131122612
