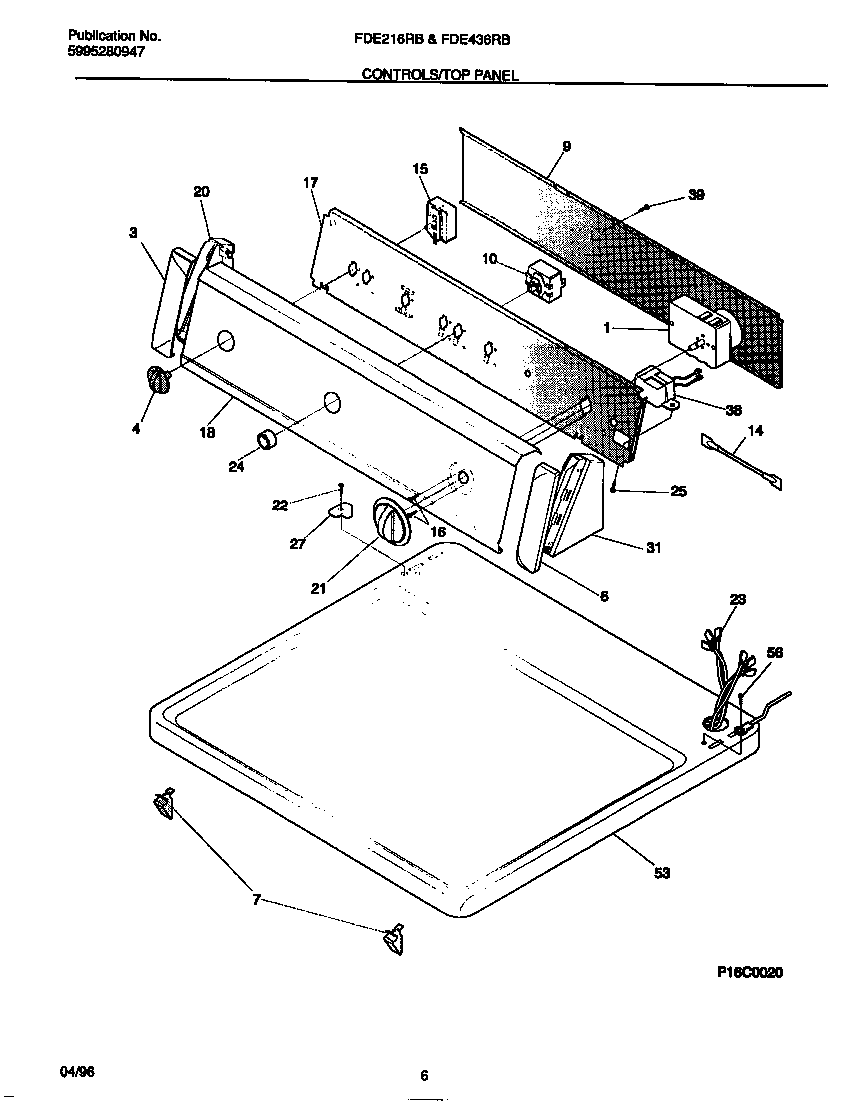

FDE436RBT2 04 – CONTROLS/TOP PANEL

FDE436RBT2 04 – CONTROLS/TOP PANEL

Written by

in

FDE436RBT2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*002815303303590 Frigidaire Dryer 4.0" Cable Tie
15303297177 Frigidaire Dryer Control Timer
3WCI 131122612
4WCI 131141102
6WCI 131122602
73205821 Frigidaire Clip
9BACKSHEET
10WCI 131048000
14RESISTOR-POWER, 4.4K
15WCI 131259200
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131280700
20WCI 131122712
21WCI 131141002
22WCI 131266300
23WCI 131569400
24WCI 131111504
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 131122702
38WCI 5303210285
39131205100 Frigidaire Screw
53WCI 131130404
56131243800 Frigidaire Screw
