FDE436RET1 03 – FRONT PANEL/LINT FILTER

FDE436RET1 03 – FRONT PANEL/LINT FILTER

Written by

in

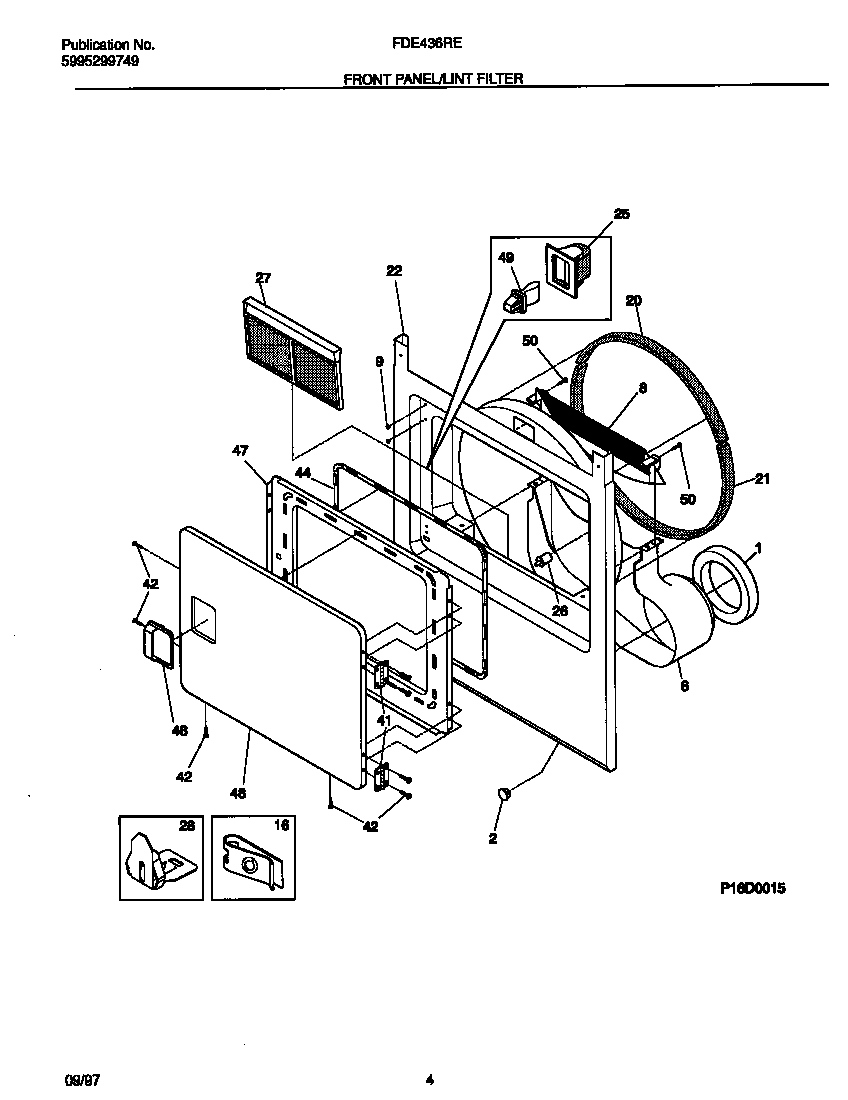

FDE436RET1 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
*90241WCI 131598101
1134417000 Frigidaire Seal
2WCI 131432301
6WCI 131621900
8131622202 Frigidaire Dryer Lint Screen Housing Cover
9WCI 131633201
16WCI 131063700
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22WCI 131635811
25131658800 Frigidaire Dryer Door Catch Repair Kit
26SWITCH-DOOR
27131450300 Frigidaire Dryer Lint Screen Filter
28CLIP GUIDE (4)
41134222900 Frigidaire Dryer Door Hinge
42A134156200 Frigidaire Screw
42B134154100 Frigidaire Screw 10-32 x 0.375 Co
44137551901 Frigidaire Gasket
46WCI 131484401
47WCI 131574005
48WCI 131574105
495303207102 Frigidaire Door Strike
50131302800 Frigidaire Drum Vane Screw
