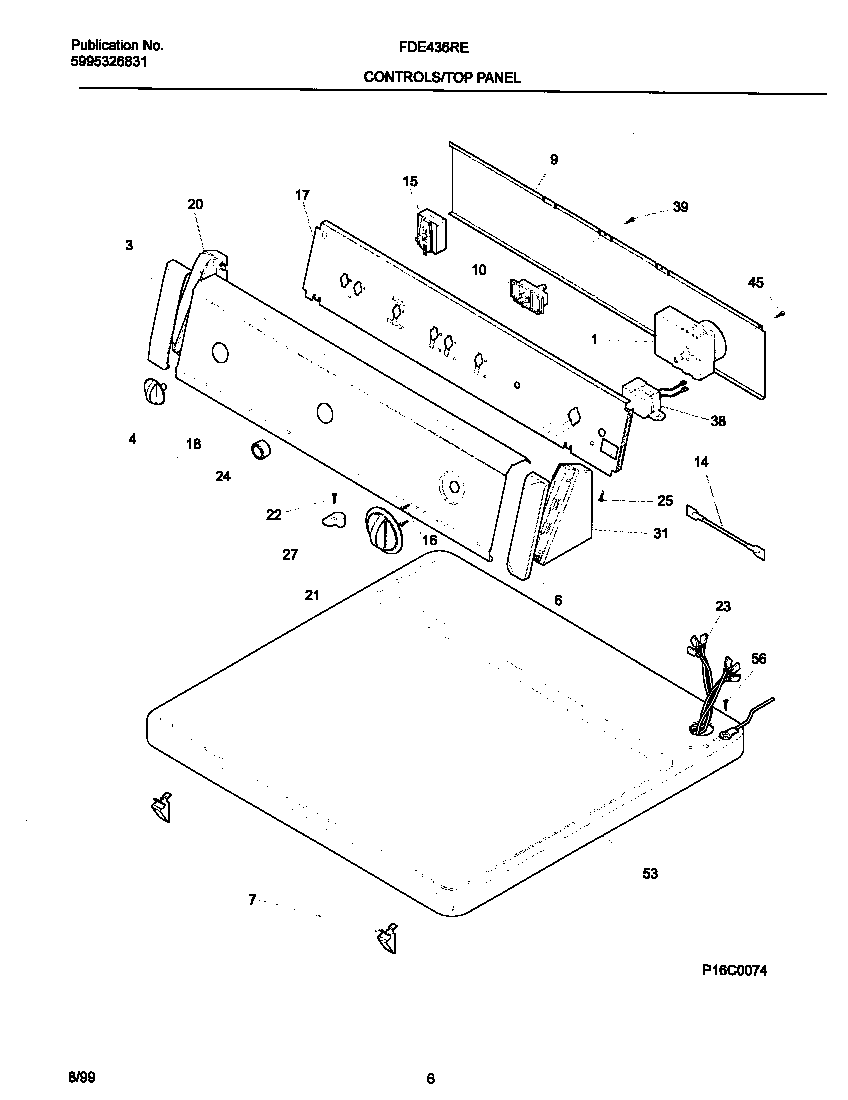

FDE436RET2 04 – CONTROLS/TOP PANEL

Products

Position	Product
1	5303297177 Frigidaire Dryer Control Timer
3	WCI 131122612
4	WCI 131141102
6	WCI 131122602
7	3205821 Frigidaire Clip
9	BACKSHEET
10	131469000 Frigidaire Switch-Push/Start P1
14	RESISTOR-POWER, 4.4K
15	WCI 131259200
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131280700
20	WCI 131122712
21	WCI 131141002
22	WCI 131266300
23	WCI 131845100
24	WCI 131111504
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 131122702
38	WCI 5303210285
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601319
56	131243800 Frigidaire Screw
