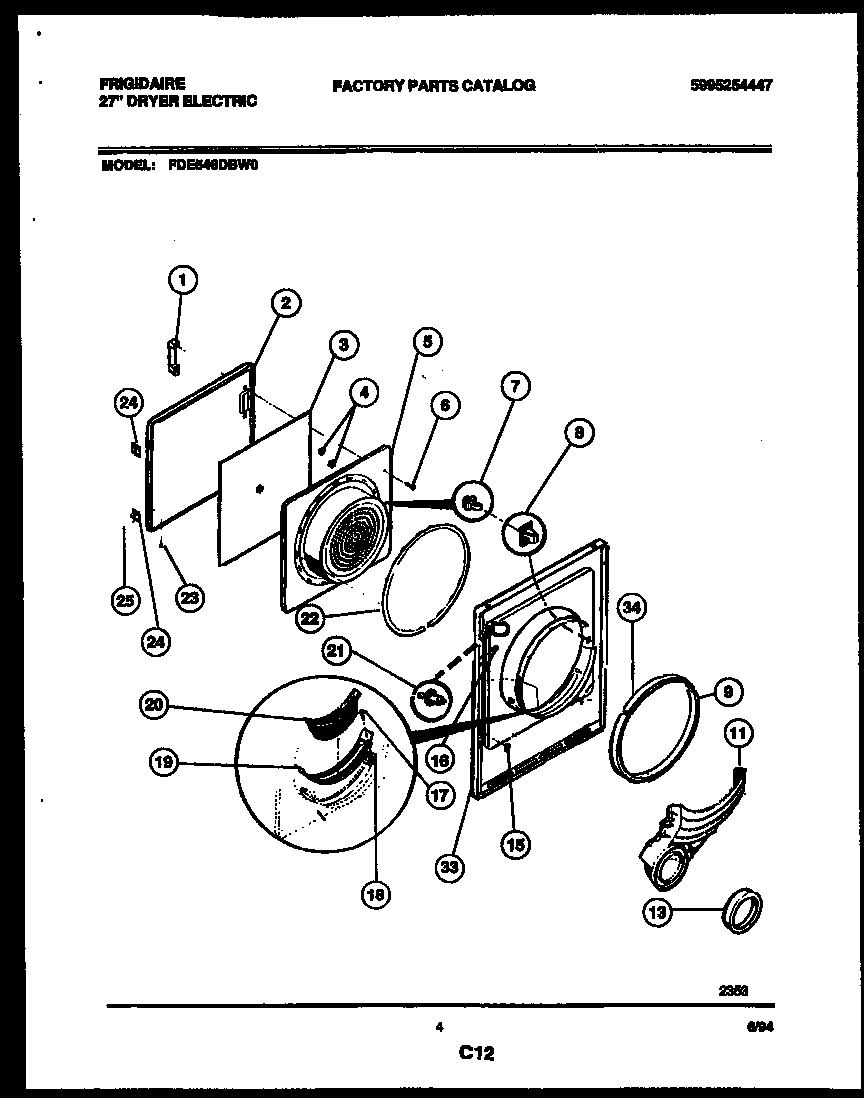

FDE546DBL0 03 – DOOR PARTS

Products

Position	Product
1	HANDLE-DOOR-WHITE
2	WCI 5303299162
3	SHIELD, HEAT
4	WCI 3201205
5A	PANEL-I.D. ALMD
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	DUCT-AIR
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	WCI 131063700
17	131420300 Frigidaire Screw
18	CLIP
20	TRAP-LINT
21	DOOR-SWITCH
22	GASKET, DOOR
23	SCREW (8)
24	HINGE, DOOR (2)
25	134156200 Frigidaire Screw
33	PANEL, FRONT, ALMOND
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
