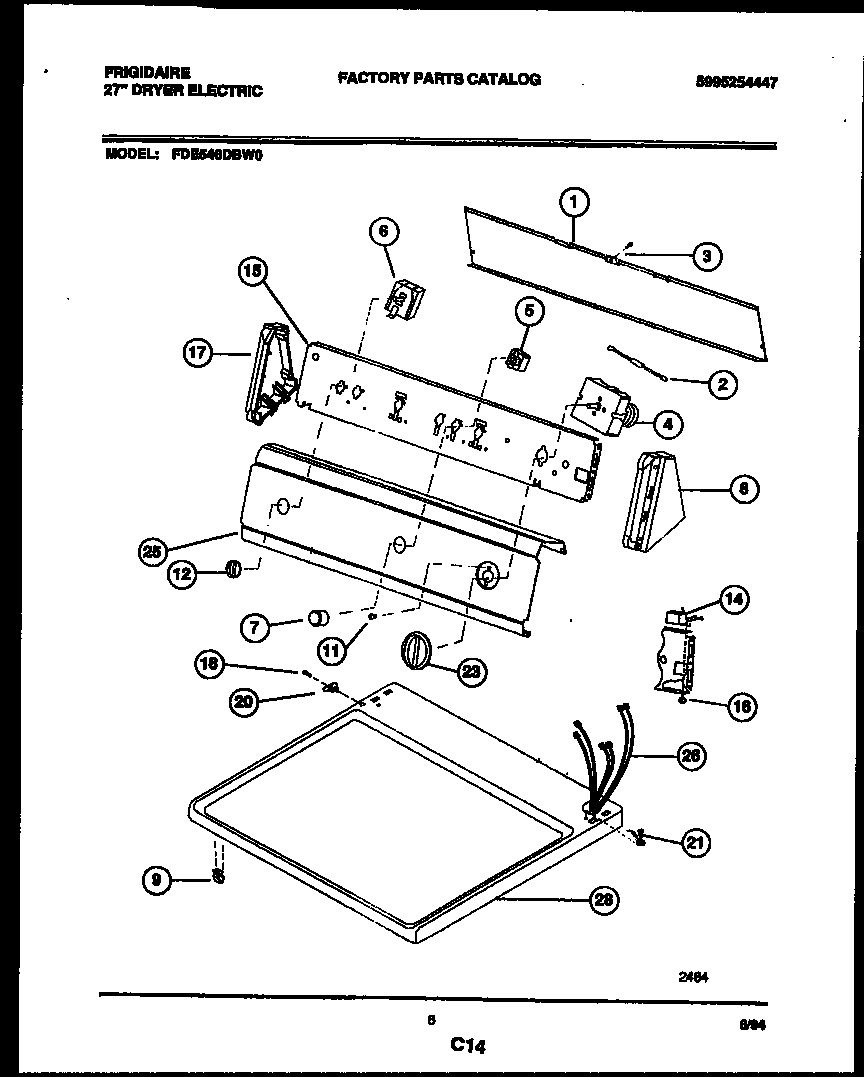

FDE546DBL0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131719100 Frigidaire Timer Assembly
5	WCI 131048000
6	WCI 131048100
7	KNOB-START SWITCH, BLACK
8	WCI 5303291352
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131081000
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 5303291344
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	KNOB-TIMER
25	WCI 131280100
26	WCI 131235300
28	WCI 131130304
