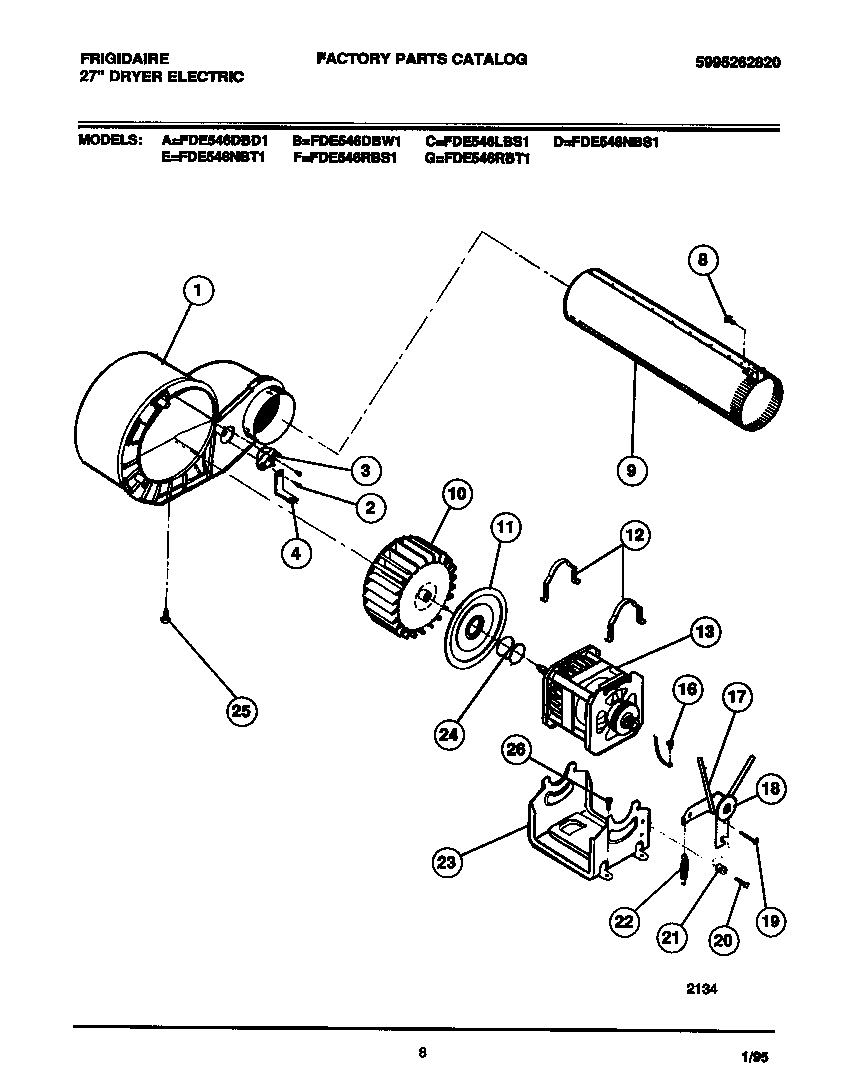

FDE546DBW1 05 – MOTOR, FAN HSG., EXHAUST DUCT

Products

Position	Product
1	WCI 5303270858
2	SCREW
3	131298300 Frigidaire Thermostat Control
4	WCI 5303269972
8	5303015671 Frigidaire Bracket Termination Screw
9	WCI 5303269973
10	WCI 5303281079
11	WCI 5303281080
12	WCI 5303212834
13	WCI 5303283470
16	SCREW (2)
17	134503600 Frigidaire Dryer Belt
18	WCI 5303212849
19	SCREW-STOP
20	131017900 Frigidaire Screw
21	WCI 5303281076
22	5303281085 Frigidaire Spring Idler
23	WCI 131367101
24	WCI 5303281083
25	WCI 3281036
26	131168200 Frigidaire Dryer Screw
