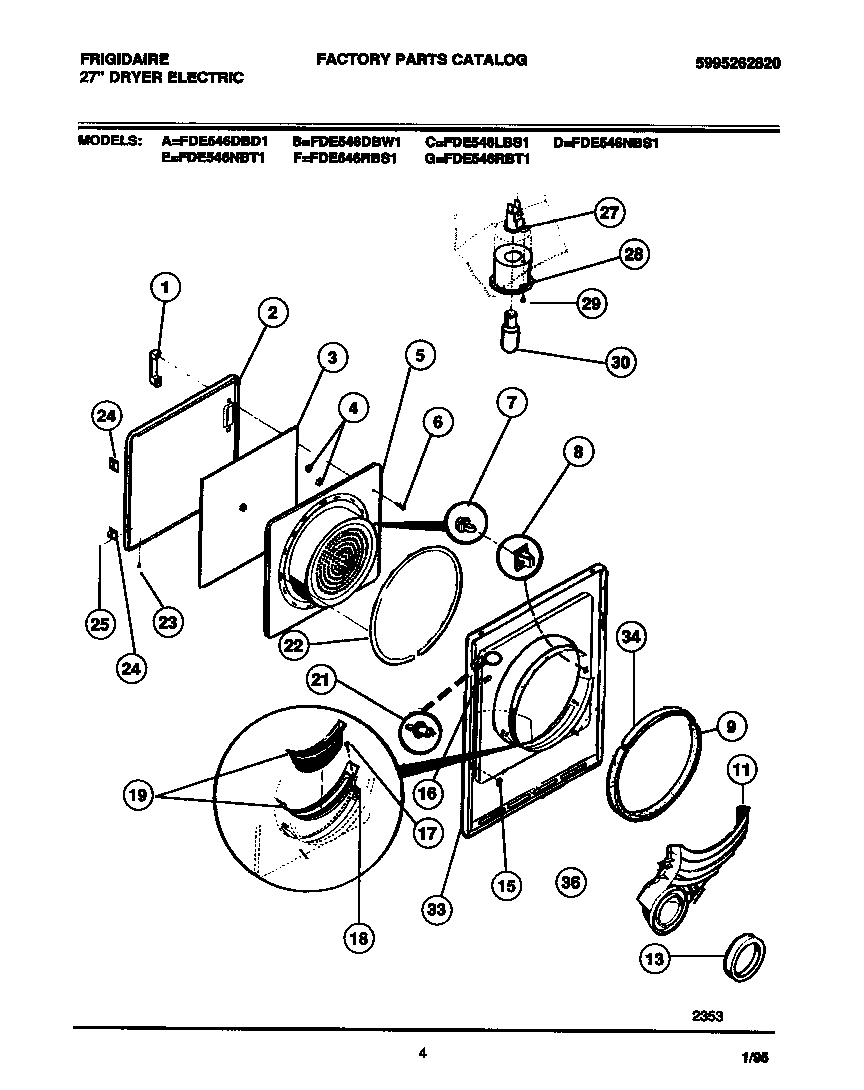

FDE546LBS1 03 – DOOR, FRONT PANEL, LINT FILTER

FDE546LBS1 03 – DOOR, FRONT PANEL, LINT FILTER

Written by

in

FDE546LBS1 03 – DOOR, FRONT PANEL, LINT FILTER

Products

PositionProduct
1WCI 131192301
2WCI 5303299162
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
19TRAP-LINT
21DOOR-SWITCH
22GASKET, DOOR
23SCREW (8)
24HINGE, DOOR (2)
25134156200 Frigidaire Screw
27WCI 5308015210
28WCI 5308015259
29131243700 Frigidaire Screw
30WCI 5308027430
33WCI 131003412
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
