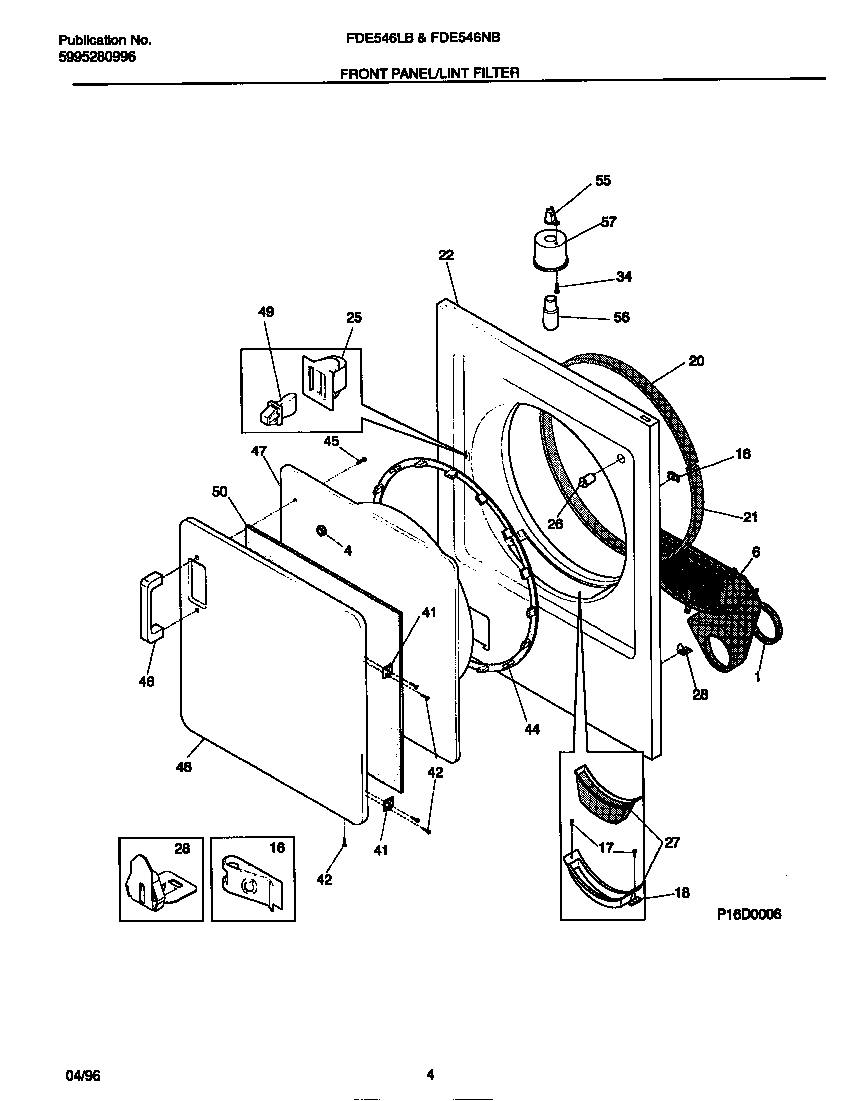

FDE546NBS2 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
1	134417000 Frigidaire Seal
4	WCI 3201205
6	DUCT-AIR
16	WCI 131063700
17	131420300 Frigidaire Screw
18	CLIP
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	WCI 5303281049
22	WCI 131003412
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	WCI 131390300
28	CLIP GUIDE (4)
34	131243700 Frigidaire Screw
41	HINGE, DOOR (2)
42	134156200 Frigidaire Screw
44	GASKET, DOOR
45	WCI 5303281051
46	WCI 131192301
47	WCI 5303318706
48	PANEL-OUTER DOOR, WHITE
49	5303207102 Frigidaire Door Strike
50	SHIELD, HEAT
55	WCI 5308015210
56	WCI 5308027430
57	WCI 5308015259
