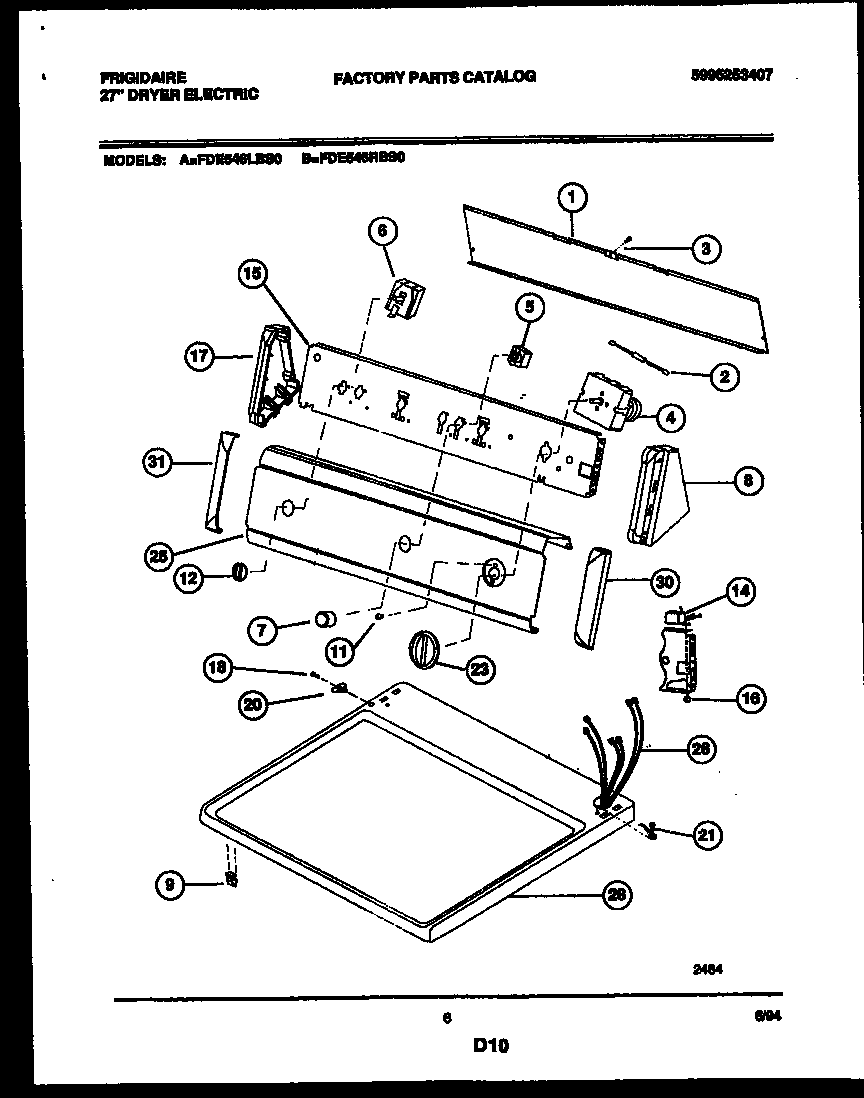

FDE546RBS0 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACKSHEET
2	RESISTOR-POWER, 4.4K
3	131205100 Frigidaire Screw
4	131719100 Frigidaire Timer Assembly
5	WCI 131048000
6	WCI 131048100
7	WCI 131141302
7	WCI 131141301
8	END CAP-R.H.-WHITE
8	WCI 131122702
9	3205821 Frigidaire Clip
11	218359202 Frigidaire Refrigerator Screw
12	WCI 131141102
12	131858004 Frigidaire Control Knob, White
14	WCI 5303210285
15	WCI 131297306
16	5303015671 Frigidaire Bracket Termination Screw
17	WCI 131122712
17	END CAP-L.H.-WHITE
18	WCI 5303289526
20	CLIP-CONSOLE MTG
21	131243800 Frigidaire Screw
23	WCI 131141002
23	134011703 Frigidaire Dryer Timer Knob
25	WCI 131280900
25	WCI 131280800
26	WCI 131235400
28	PANEL-TOP-WHITE
28	WCI 131130304
30	WCI 131122602
30	COVER-CAP-RH-WHITE
31	WCI 131122612
31	COVER-CAP-LH-WHITE
