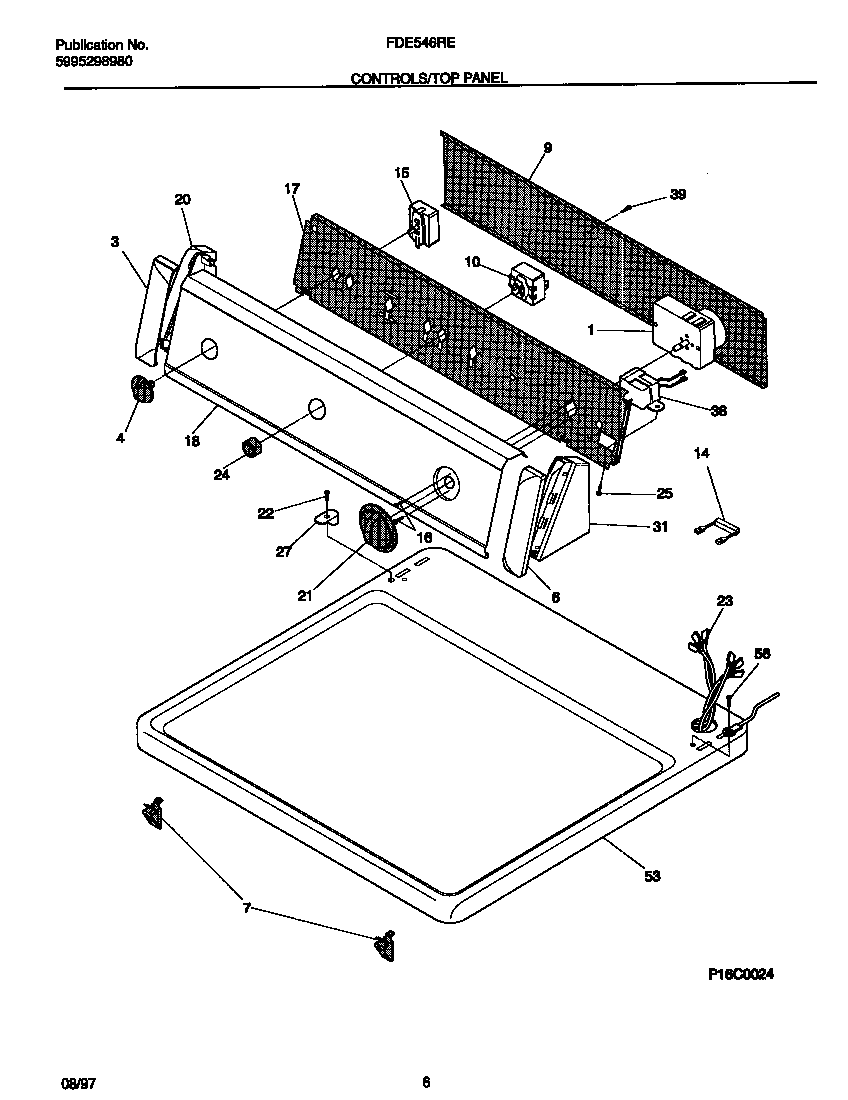

FDE546RES1 04 – CONTROLS/TOP PANEL

Products

Position	Product
1	131719100 Frigidaire Timer Assembly
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	131469000 Frigidaire Switch-Push/Start P1
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131280800
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131484700
24	WCI 131111501
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
