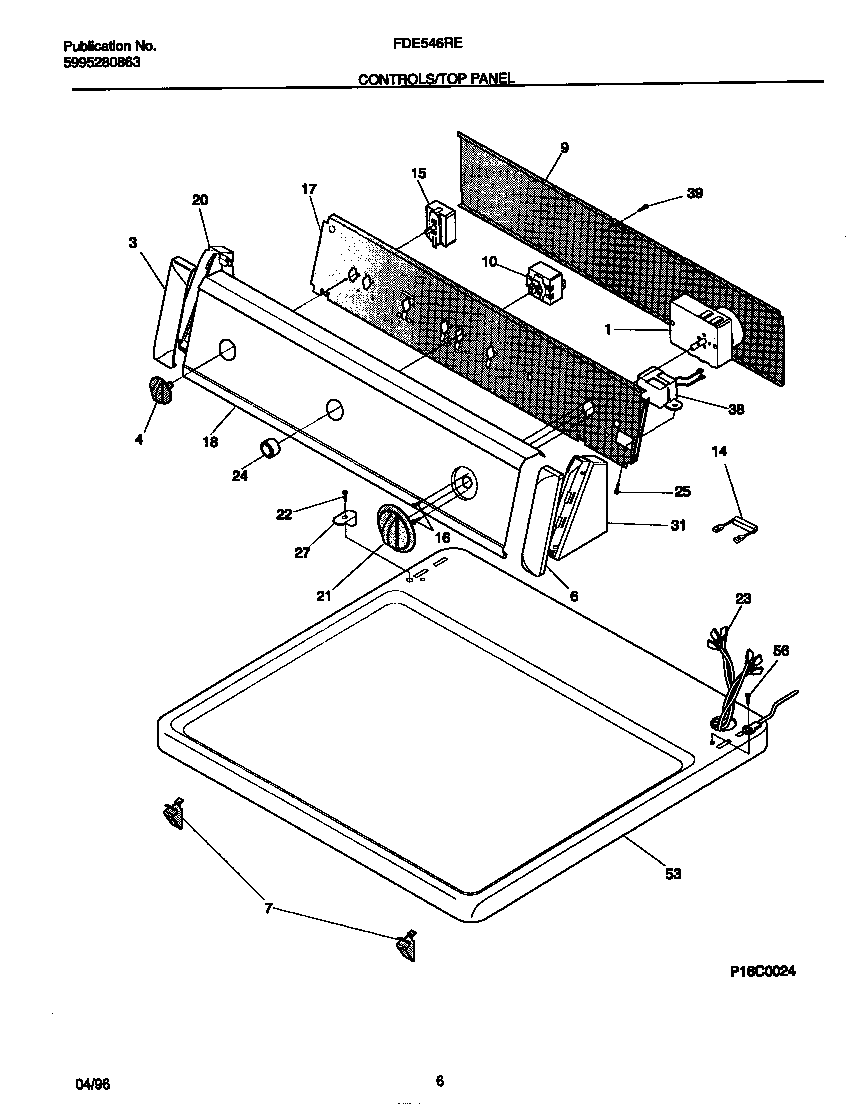

FDE546RET0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*96602	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
3	WCI 131122612
4	WCI 131141102
6	WCI 131122602
7	3205821 Frigidaire Clip
9	BACKSHEET
10	WCI 131048000
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131280900
20	WCI 131122712
21	WCI 131141002
22	WCI 131266300
23	WCI 131484700
24	WCI 131111504
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 131122702
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131391619
56	131243800 Frigidaire Screw
