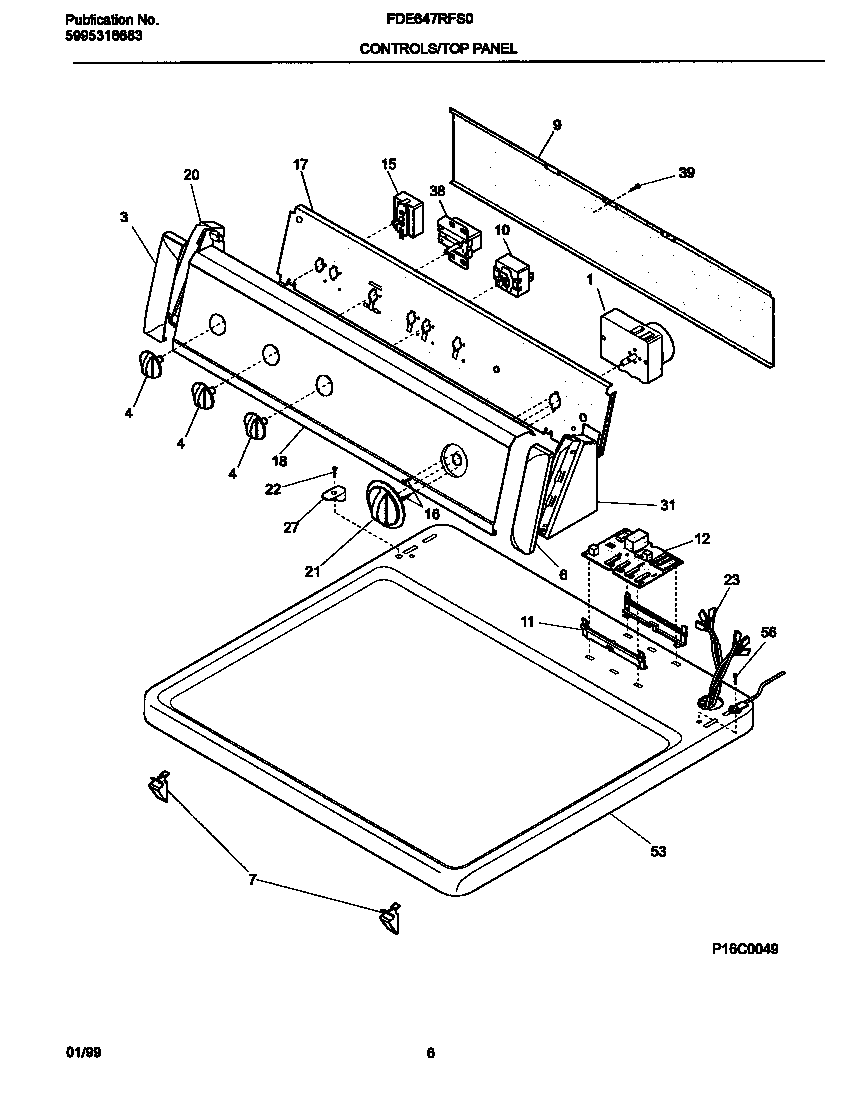

FDE647RFS0 04 – P16C0049 CONTROL PANEL

Products

Position	Product
1	WCI 131579800
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
6	COVER-CAP-RH-WHITE
7	3205821 Frigidaire Clip
9	BACKSHEET
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11	BRACKET-CONTROL BOARD
12	CONTROL BOARD,MOISTURE SENSOR
15	WCI 131641900
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131797800
20	END CAP-L.H.-WHITE
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131633500
27	CLIP-CONSOLE MTG
31	END CAP-R.H.-WHITE
38	WCI 131048300
39	131243700 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
