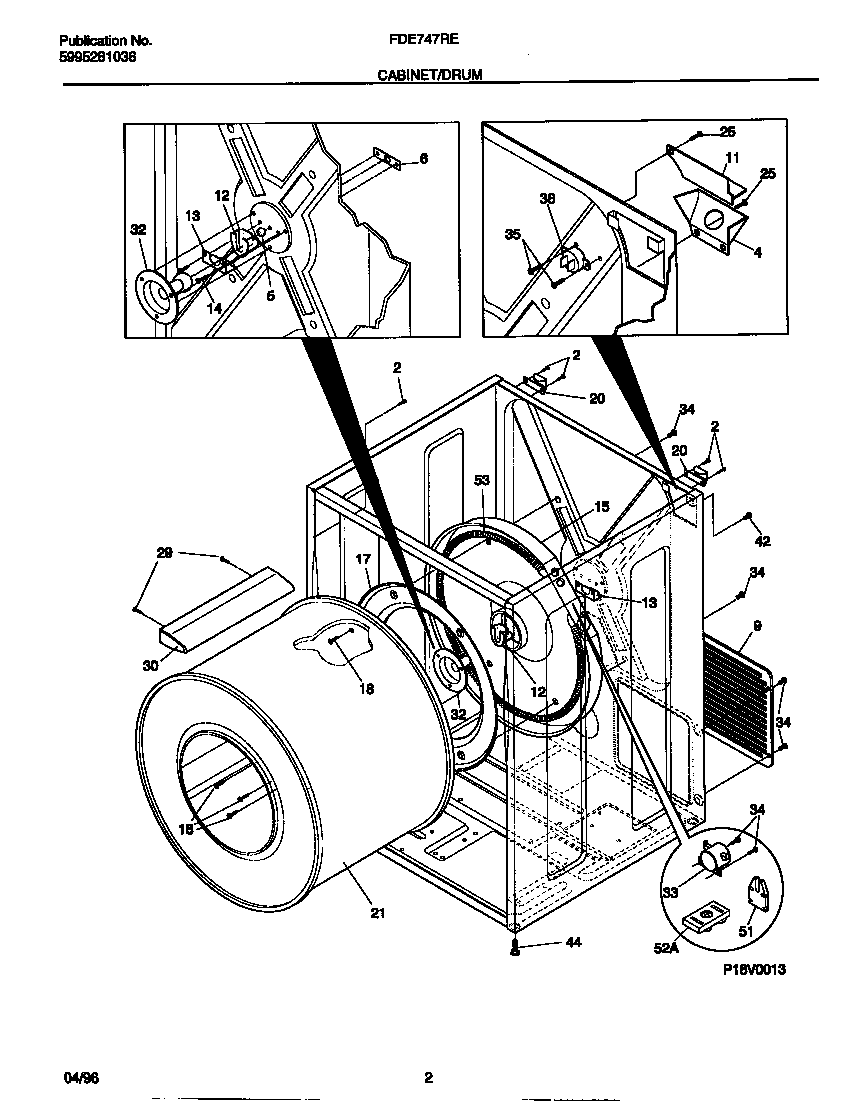

FDE747RES0 02 – CABINET/DRUM

Products

Position	Product
*57200	WCI 5303281153]
4	WCI 3281040
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PLATE-COVER
11	WCI 5303211428
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15B	HEATER HSG ASSY 5/16" (DW1)
17	3204254 Frigidaire Baffle Assembly
18	131168200 Frigidaire Dryer Screw
20	WCI 131469100
21	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
25	5303015671 Frigidaire Bracket Termination Screw
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
32	131777700 Frigidaire Dryer Bearing Drum
33	WCI 5303281113
34	131243700 Frigidaire Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	LEG-LEVELING
51	131472100 Frigidaire Dryer Insulator Heater Coil
52	3202786 Frigidaire Terminal Block
53	LARG DIA COIL 1/4" TERM
64	WCI 131353500
