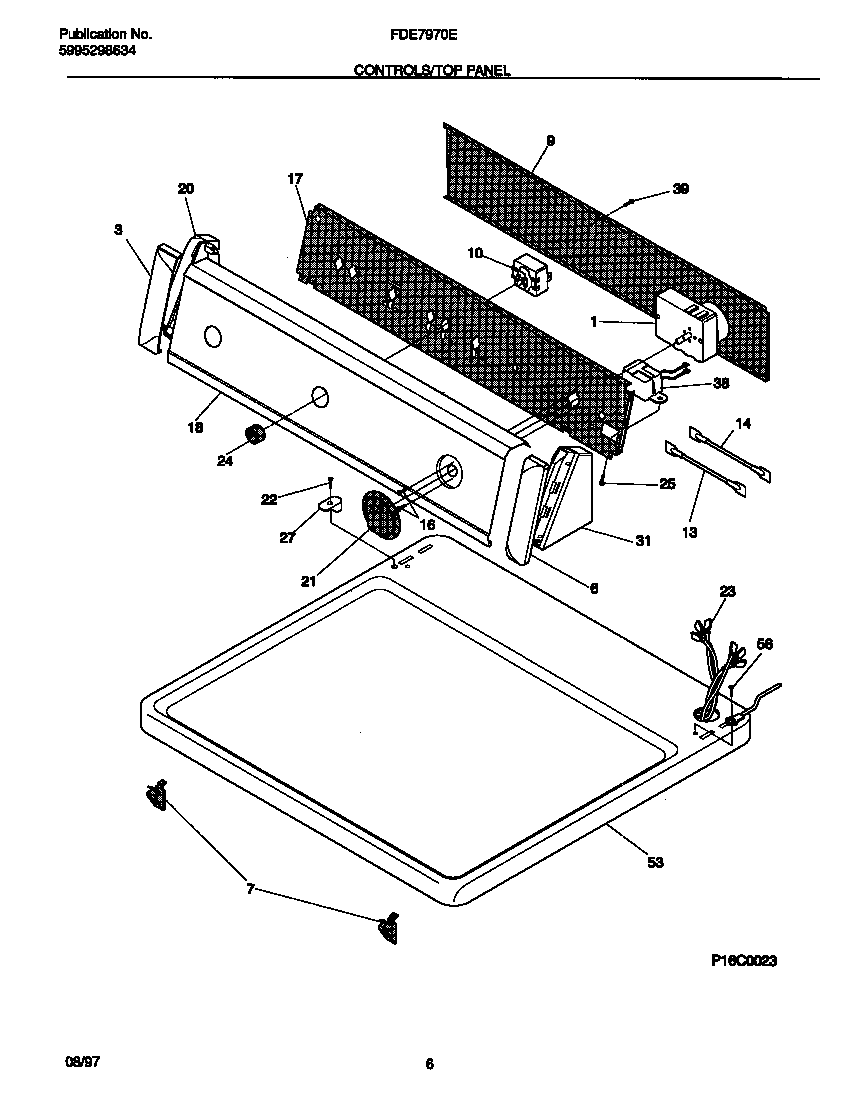

FDE7970EW1 04 – CONTROLS/TOP PANEL

Products

Position	Product
1	131062300 Frigidaire Timer
3	WCI 131122610
6	WCI 131122600
7	3205821 Frigidaire Clip
9	BACKSHEET
10	131469000 Frigidaire Switch-Push/Start P1
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131614700
20	WCI 131122710
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131515400
24	KNOB-START SWITCH, BLACK
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 131122700
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
