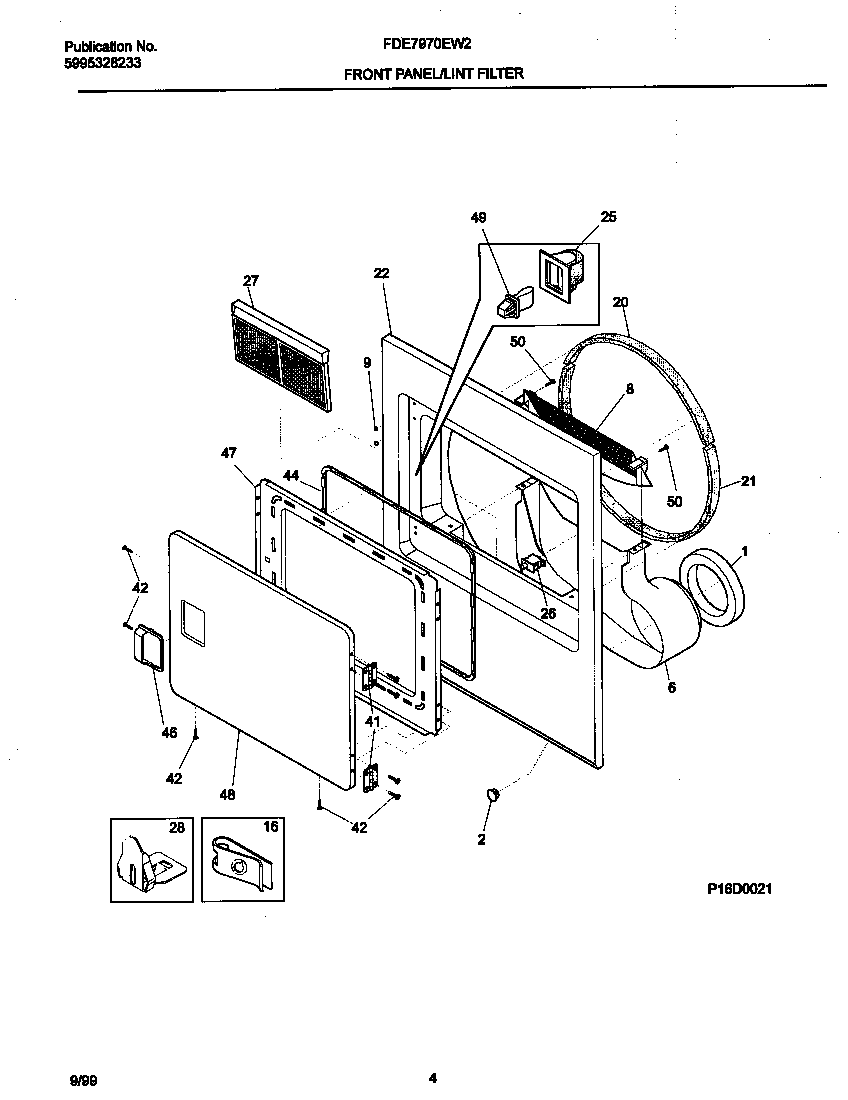

FDE7970EW2 03 – FRONT PANEL/LINT TRAP

Products

Position	Product
*57803	5308027429 Frigidaire Dryer High Temperature Adhesive
*57804	WCI 131474700
1	134417000 Frigidaire Seal
2	131397000 Frigidaire Plug
6	WCI 131621900
8	131622202 Frigidaire Dryer Lint Screen Housing Cover
9	131633200 Frigidaire Plug
16	WCI 131063700
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131845922
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	131450300 Frigidaire Dryer Lint Screen Filter
28	CLIP GUIDE (4)
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	131644700 Frigidaire Dryer Door Handle (White)
47	WCI 131844104
48	DOOR-OUTER, WHITE
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
