FDE7970EW2 04 – CONTROL PANEL

FDE7970EW2 04 – CONTROL PANEL

Written by

in

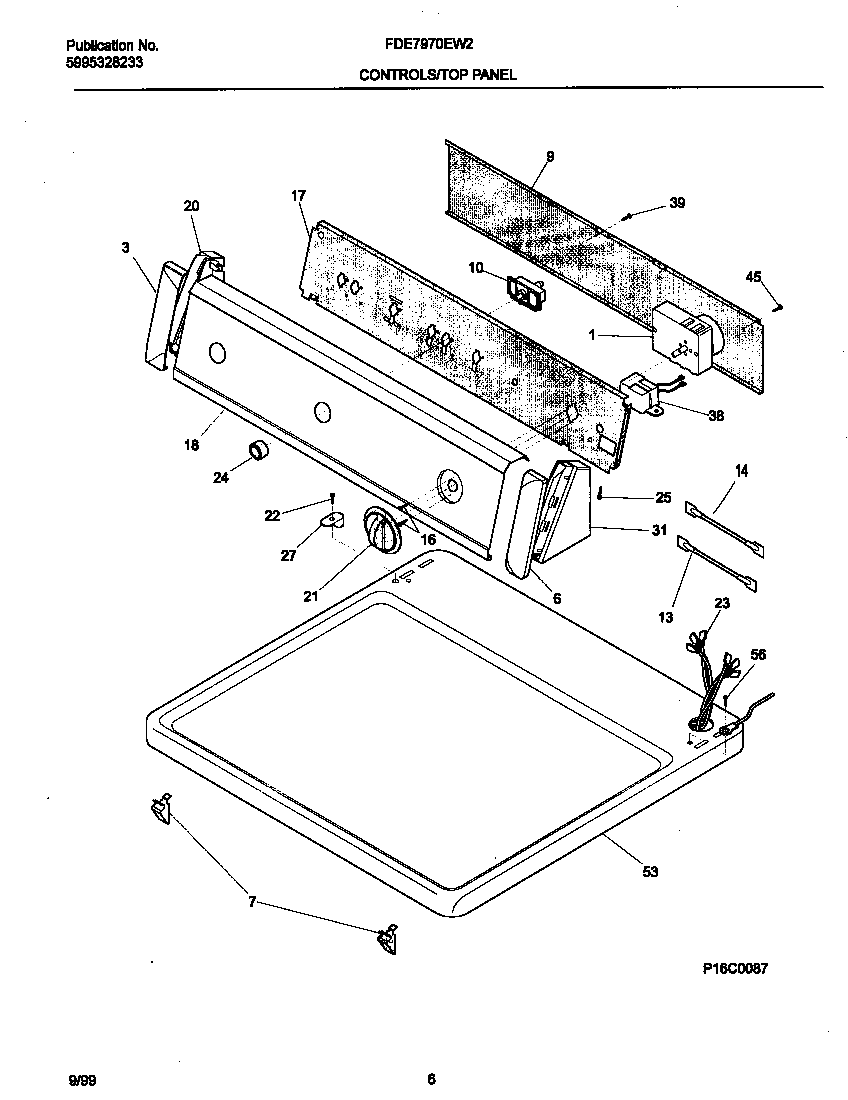

FDE7970EW2 04 – CONTROL PANEL

Products

PositionProduct
1131062300 Frigidaire Timer
3WCI 131122610
6WCI 131122600
73205821 Frigidaire Clip
9BACKSHEET
10131469000 Frigidaire Switch-Push/Start P1
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131728900
18WCI 131614700
20WCI 131122710
21134011703 Frigidaire Dryer Timer Knob
22WCI 131266300
23WCI 131844800
24KNOB-START SWITCH, BLACK
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 131122700
38WCI 5303210285
39131243700 Frigidaire Screw
45131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
