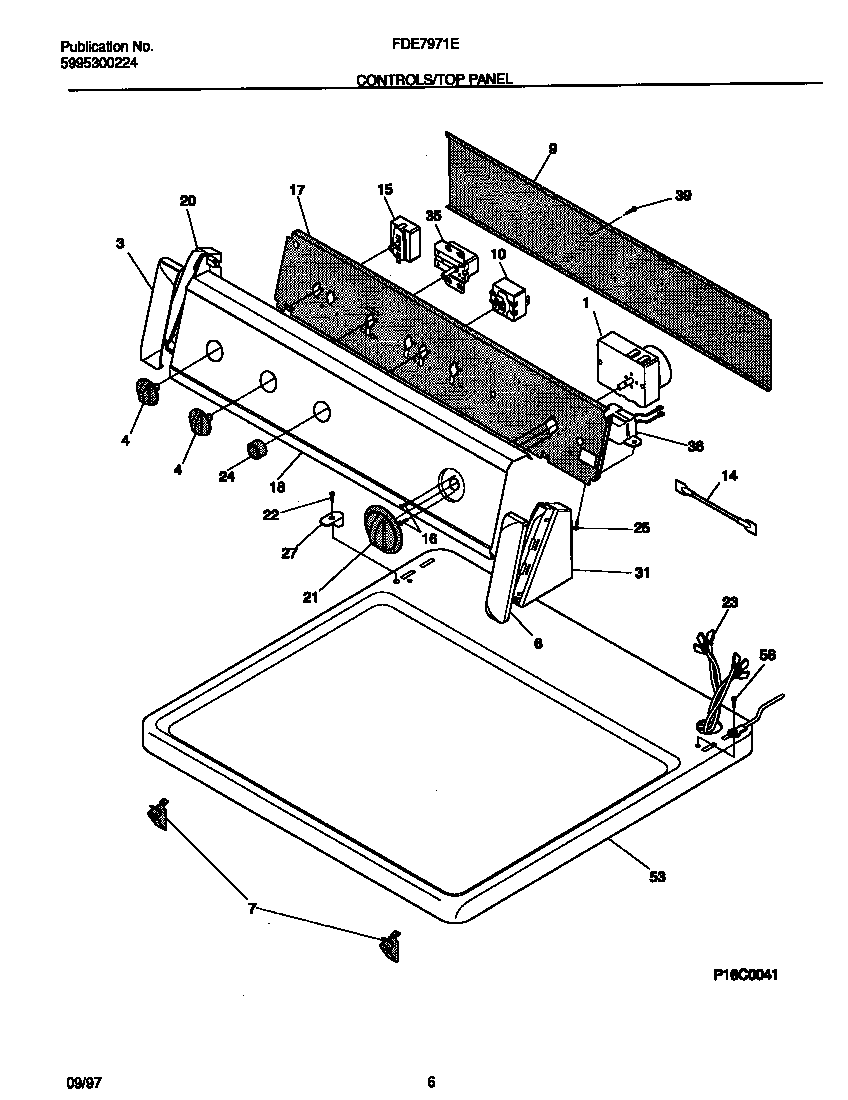

FDE7971EW1 04 – CONTROLS/TOP PANEL

FDE7971EW1 04 – CONTROLS/TOP PANEL

Written by

in

FDE7971EW1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*52681WCI 131629600
1131719100 Frigidaire Timer Assembly
3WCI 131122610
4131858004 Frigidaire Control Knob, White
6WCI 131122600
73205821 Frigidaire Clip
9BACKSHEET
10131469000 Frigidaire Switch-Push/Start P1
14RESISTOR-POWER, 4.4K
15WCI 131048100
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131615000
20WCI 131122710
21134011703 Frigidaire Dryer Timer Knob
22WCI 131266300
23WCI 131484700
24KNOB-START SWITCH, BLACK
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 131122700
35Switch,2 position
38WCI 131629400
39131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
