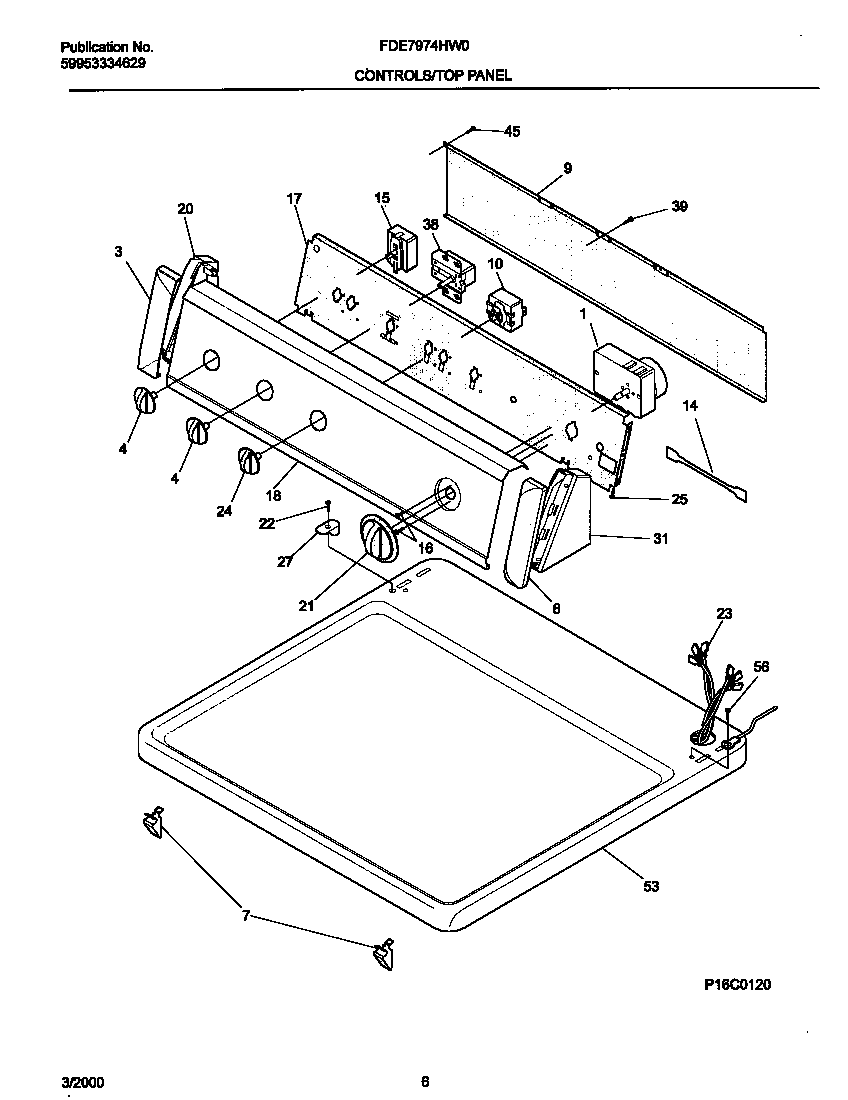

FDE7974HW0 04 – P16C0120 CONTROL PANEL

Products

Position	Product
1	131719100 Frigidaire Timer Assembly
3	WCI 131122610
4	131858004 Frigidaire Control Knob, White
6	WCI 131122600
7	3205821 Frigidaire Clip
9	BACKSHEET
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131728900
18	WCI 131935500
20	WCI 131122710
21	134011703 Frigidaire Dryer Timer Knob
22	WCI 131266300
23	WCI 131845500
24	KNOB-START SWITCH, BLACK
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 131122700
38	WCI 131048300
39	131243700 Frigidaire Screw
45	131205100 Frigidaire Screw
53	WCI 131601318
56	131243800 Frigidaire Screw
